Four 288-pin DDR4
SDRAM Supported |
RAID 0, 1, 5, 10 function compatible with six ports
of SATA 6Gb/s |
HDMI™ |
M.2 M Key |
|
 |
 |
PICMG 1.3 full-size CPU card |
|
LGA1151 Intel® Xeon® E3, 8th generation Core™ i7/i5/i3, Celeron® and Pentium® processor supported |
|
Dual-channel DDR4 2666MHz |
|
Support HDMI™ and internal DP display |
|
Intel® PCIe GbE with Intel® AMT 11.0 supported |
|
Support M.2 M key for storage (PCIe x4) |
|
Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s |
|
|
|
| Model |
SPCIE-C246 |
| CPU |
LGA1151 socket supports Intel® Xeon® E3, 8th generation Core™ i7/i5/i3, Pentium® or Celeron® processor |
| Chipset |
Intel® C246 |
| Memory |
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC (C246) |
| BIOS |
AMI UEFI BIOS |
| Graphic Engine |
Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0 |
| Display Output |
Dual display supported
1 x HDMI™ (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz) |
| Ethernet |
LAN1: Intel® I219LM PHY
LAN2: Intel® I211-AT PCIe controller (Co-lay I210-AT) |

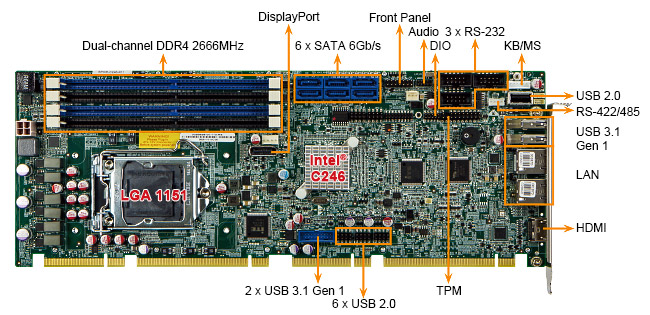

| External I/O Interface |
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°) |
| Internal I/O Interface |
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54) |
| Audio |
Support 7.1 channel HD audio by IEI AC-KIT-892HD kit |
| Front Panel |
1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| TPM |
1 x TPM (2x10 pin) |
| SMBus |
1 x SMBus (1x4 pin) |
| I²C |
1 x I²C (1x4 pin) |
| Expansion |
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger |
| Watchdog Timer |
Software programmable support 1~255 sec. system reset |
| Digital I/O |
8-bit digital I/O (2x5 pin) |
| FAN Connector |
1 x CPU smart fan (1x4 pin)
1 x System smart fan (1x3 pin) |
| Power Supply |
AT/ATX power supply
Support AT/ATX mode
ErP/EuP Compliant |
| Power Consumption |
5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A
(4.0 GHz Intel® Core™ i7-8700K CPU with four 16 GB 2666 MHz DDR4 memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
338 mm x 126 mm |
| Weight |
GW: 1000g / NW: 500g |
| CE/FCC compliant |
|
|
|
 |
|
|
| Part No. |
Description |
| SPCIE-C246-R11 |

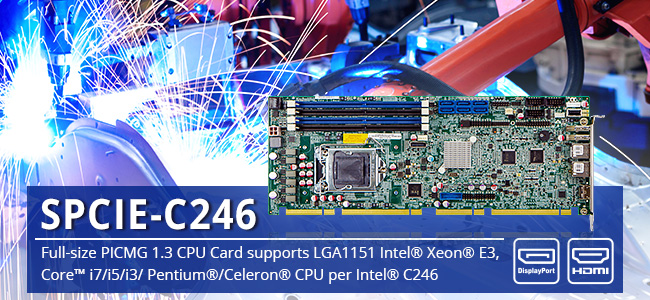

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i7/i5/i3/ Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, M.2, USB 3.1 Gen 1 (5Gb/s), SATA 6Gb/s, HD Audio, iAMT and RoHS |
| 19800-000075-RS |
PS/2 KB/MS cable with bracket, 220mm, P=2.0 |
| 32102-000100-200-RS |
SATA power cable, MOLEX 5264-4P to SATA15P |
| AC-KIT-892HD-R10 |
7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams |
| CF-1150SA-R10 |
Special cooler kit for LGA1150, High-performance compatible, 95W |
| CF-1150SB-R11 |
Special cooler kit for LGA1150, High-performance compatible, 65W |
| CF-1150SC-R20 |
Special cooler kit for LGA1150, 1U chassis compatible, 65W |
| CF-1150SE-R11 |
Special cooler kit for LGA1150, high-performance compatible, 95W |
| CF-1150SF-R10 |
Special cooler kit for LGA1150, 1U chassis compatible, 54W |
| SAIDE-KIT01-R10 |
SATA to IDE/CF Converter board |
|
|
|
| 1 x SPCIE-C246 single board computer |
1 x Mini jumper pack |
| 1 x SATA cable |
1 x QIG (Quick Installation Guide) |
|
|
|
|
|
|
