8th/9th Gen Intel® Core™ processor platform with Intel® Q370 chipset and DDR4 memory
|
|
Dual independent displays with high resolution support
|
|
Rich high-speed I/O interfaces
|
|
On-board internal power connector for providing power to add-on cards
|
|
Four accessible 2.5” HDD/SSD SATA 6 Gb/s bay(with RAID 0/1/5/10 support)
|
|
Great flexibility for hardware expansion
|
|
|
|
| Model |
TANK-880-Q370 |
| Chassis |
Color |
Black C + Silver |

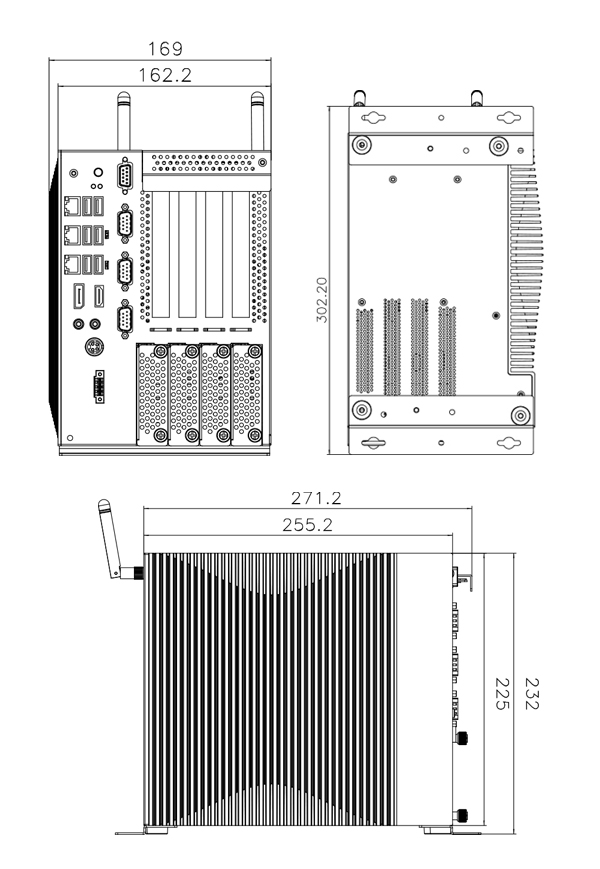

| Dimensions (WxDxH) |
169 x 255.2 x 225 mm |
| System Fan |
Fanless |
| Chassis Construction |
Extruded aluminum alloys |
| Motherboard |
CPU |
8th Gen Intel® Core™ CPU &
Intel® Core™ i7-9700TE 1.8GHz (up to 3.8GHz, 8-core, TDP 35W)
Intel® Core™ i5-9500TE 2.2GHz (up to 3.6GHz, 6-core, TDP 35W) |
| Chipset |
Intel® Q370 |
| System Memory |
2 x SO-DIMM DDR4 2666/ 2400 (8GB pre-installed) (up to 64GB) |
| Storage |
Hard Drive |
4 x 2.5" HDD/SSD SATA 6Gb/s bay (with RAID 0/1/5/10 support) |

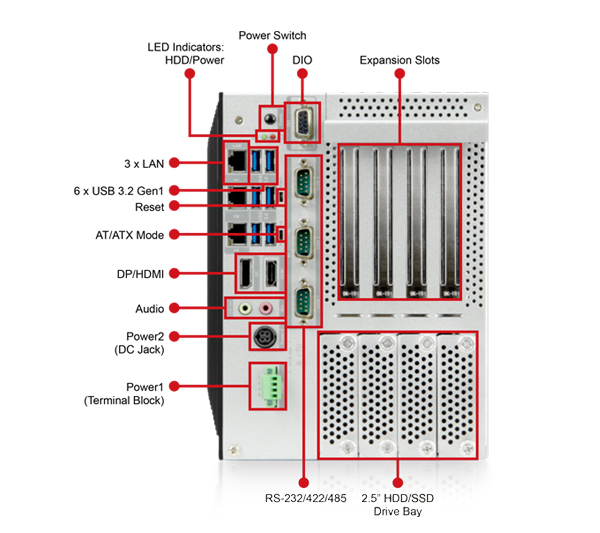

| I/O Interfaces |
Ethernet |
3 x RJ-45
1 x PCIe GbE by I219 controller
2 x PCIe GbE by I210 controller |
| USB 3.2 Gen 1 (5Gb/s) |
6 |
| COM Port |
3 x RS-232/422/485 with AFC (DB-9 w/2.5 kV isolation protection) |
| Digital I/O |
8 bit Digital I/O (4-input / 4-output) |
| Display |
1 x HDMI™ 1.4b, 1 x DP |
| Audio |
1 x Line-out, 1 x Mic-in |
| TPM 2.0 |
1 x TPM 2.0 (2 x 10 pin) (optional) |
| Expansions |
PCIe Mini |
1 x Full-size (PCIe/ USB 2.0/ SATA) |
| M.2 |
1 x 2230 A key (PCIe x2/ USB2.0)
2 x 2280 M key (PCIe x2) |
| Back Plane |
1 x PCIe by 16, 1 x PCIe by 1, 2 x PCIe by 4 |
| Power |
Power Input |
DC Jack: 9 V~36 V DC |
| Power Consumption |
19V @ 5.4A (Intel® Core™ i7-9700TE with 8GB memory) |
| Internal Power Output |
12V @ up to 10A |
| Reliability |
Mounting |
Wall mount |
| Operating Temperature |
-20°C ~ 60°C with air flow (SSD), 10% ~ 95%, non-condensing |
| Storage Temperature |
-40°C ~ 85°C with air flow (SSD), 10% ~ 90%, non-condensing |
| Operating Shock |
Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| Operation Vibration |
MIL-STD-810G 514.6C-1 (with SSD) |
| Weight ( Net/Gross) |
5.4 kg/8.45 kg |
| Safety / EMC |
CE/FCC |
| Watchdog timer |
Programmable 1 ~ 255 sec/min |
| OS |
Supported OS |
Microsoft® Windows® 10 IoT Enterprise/ Linux |
|
|
|
|
TANK-880-Q370
|
 |
|
|
|
|
TANK-880-Q370
|
 |
|
|
| Part No. |
Description |
| TANK-880-Q370-i7R/8G/4A-R10 |
Ruggedized Fanless embedded system with Intel® i7-9700TE 1.8GHz, (up to 3.8GHz, 8-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI™/DP, 9~36V DC, RoHS |
| TANK-880-Q370-i5R/8G/4A-R10 |
Ruggedized Fanless embedded system with Intel® i5-9500TE 2.2GHz, (up to 3.6Hz, 6-core, TDP 35W), 8GB DDR4 pre-installed memory, 1 x PCIe by 16 & 2 x PCIe by 4 & 1 x PCIe by 1 expansion, HDMI™/DP, 9~36V DC, RoHS |
|
|
|
| Part No. |
Description |
| Wi-Fi Module |
27319-000009-RS |
Wireless Lan Module; Wireless LAN & Bluetooth M.2 Module; Sparklan; R9701810011; IEEE802.11a/b/g/n/ac; 2.412GHz~2.4835GHz, 5.15GHz~5.85GHz; M.2 2230; 3.3V; 22*30*2.15mm; QCNFA364A;QCA6174A-5; 2x2 MIMO; Dual Band; WCBN808A-Q2;CCL; CCL; RoHS |
| Antenna |
32505-000900-100-RS* |
External Antenna; WLAN; RG 178; 108MM; TANK-700-QM67-R10; PEAK GAIN 2.0DBI; Exceltek; 2.4-2.5GHz/5.15-5.85GHz; REVERSE SMA PLUG; RoHS |
| RF Cable |
32501-004000-100-RS* |
RF; RF CABLE; LINE DIAMETER:0.81mm; 250MM; 50Ω; Sparklan; 0-6GHz; VSWR≤1.3; I-PEX MHF-4 Plug; REVERSE SMA JACK; NUT x1; WASHER x 1; RoHS |
| Adapter |
63040-010150-700-RS |
Adapter Power; FSP; FSP150-ABAN3; 9NA1504811; Active PFC; Vin:90~264VAC; 150W; Dim:75.6*151.3*25.4mm; Plug=6.5mm;Cable=1500mm; Erp(NO LOAD 0.15W); Vout:19VDC; Din 4Pin/lock; CCL; RoHS |
| Power Cord |
32702-000400-200-RS |
European power cord |
| TPM 2.0 Module |
TPM-IN02-R20 |
20-pin Infineon TPM2.0 module, software mangement tool, firmware v5.5 |
| System Fan |
31100-000440-RS |
FAN; +12V; 4PIN; Everflow; 92*92*25mm; 3600RPM; TWO BALL BEARING; LINE LENGTH:180MM; 4.4+/-0.3MM; F129025BU; F129025BUAFW30aR; AXIAL FAN; WITH FRAME; 73.29CFM; 11.4~12.6V; 44dB; 70000hur; TUV,UL,CE; CCL; RoHS |
| OS:Windows Embedded 10 |
TANK-880-Q370-W10E64-H-R10 |
OS Image with Windows® Embedded Standard 10 E High End 64-bit 2019 for TANK-880-Q370-i7 Series, with DVD-ROM, RoHS |
| OS:Windows Embedded 10 |
TANK-880-Q370-W10E64-V-R10 |
OS Image with Windows® Embedded Standard 10 E Value 64-bit 2019 for TANK-880-Q370-i5 Series, with DVD-ROM, RoHS |
* Each Wi-Fi module needs two antennas and two RF cables to fully support Wi-Fi function.
|
|
|
| 1 x Chassis Screw |
1 x Wall Mount Bracket |
|
|
|
|
|
|
