End of Life Notice
* Effective Date: 2016/11/14

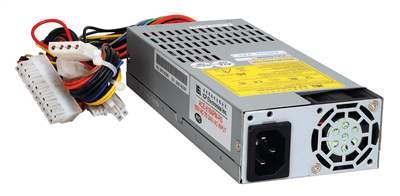

180 W 1U Type ATX Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 190 x 81.5 x 40.5 |
| Efficiency | 68% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 20-pin ATX, 4-pin 12 V CPU, 2 x FDD, 3 x HDD |
| Storage temperature | -20°C ~ 85°C |
| Watt | 180W |
| Input | |
| Voltage | 85 ~ 264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Output | |
| Voltage | +3.3V/16.8A,+5V/12A,+12V/12A,-12V/0.8A,+5Vsb/2A |
Ordering Information
| ACE-818APM-RS | 180W Medical ATX Power Supply With PFC Function;CCL;RoHS |
|---|
