TANK-630-EHL

无风扇嵌入式系统

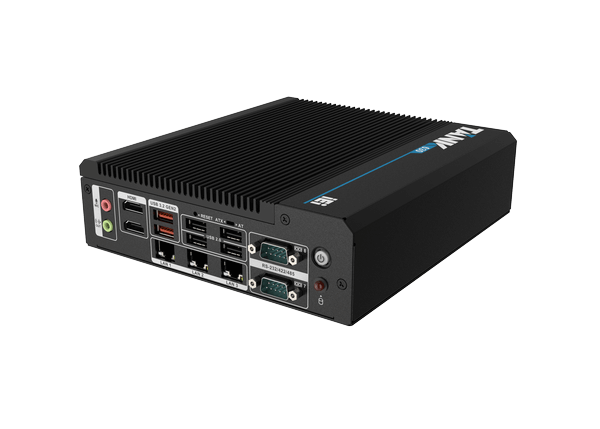

TANK-630-EHL FRONT IO
TANK-630-EHL BACK IO
TANK-630-EHL WITH STAND
  • TANK-630-EHL FRONT IO
  • TANK-630-EHL BACK IO
  • TANK-630-EHL WITH STAND
» 无风扇系统
» Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
» 多个串口：6 个 RS-232 和 2 个 RS-232/422/485 串口
» 2 个 HDMI 双独立显示
» M.2 和 1 个 2.5” 存储
» 符合CE/FCC

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
  • 芯片组:
    SoC
  • 系统内存:
    2 x SO-DIMM DDR4 3200 预装 8GB (上限 32GB)
  • 电源:
    DC Jack: 12 ~ 28V DC
    Terminal Block: 12 ~ 28V DC
    功耗: 12V@3.36 (Intel® Celeron® J6412 带 8GB DDR4 内存)
I/O Interface
I/O Ports
  • USB:
    2 x USB3.2 Gen2
    4 x USB 2.0
  • 网络:
    3 x 2.5 GbE by Intel® I225-V/I226-V controller
  • 显示:
    2 x HDMI™ (up to 4K@30Hz)
  • COM Port:
    2 x RS-232/422/485 (DB-9)
    6 x RS-232 (DB-9)
  • Digital I/O:
    12-bit Digital I/O (DB15)
  • Audio:
    1 x Line-out
    1 x Mic-in
  • Wireless:
    1 x 802.11a/b/g/n/ac (选配)
  • TPM:
    1 x TPM (2 x10 pin)
    Intel PTT
  • 看门狗定时器:
    可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 A-key (PCIe Gen3 x1/USB 2.0)
    1 x 2042/52/80 B-key (SATA/USB 2.0)
    1 x 2280 M-key (PCIe Gen3 x2)
System
Cooling method / System Fan 无风扇
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x AT/ATX开关
Indicators 1 x 电源灯
1 x HDD 灯



Physical Characteristics
Construction 铝合金
Color
Color 黑色
Dimensions
Dimensions 184 x 200.6 x 53 (mm)
Weight
Weight 2.04 /2.29 kg
Environment
工作温度 -10°C ~ 50°C 带 0.7M/S 空气流动 (M.2)
相对湿度 10% ~ 95% 无冷凝
Operating Vibration MIL-STD-810G 514.6C-1 (SSD)
Operating Shock Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
安规&电磁 CE, FCC, UKCA
OS Compatible
OS Compatible Microsoft® Windows® 10/11, Linux

Ordering Information

TANK-630-EHL-JC-R10 Fanless embedded system with Intel® Celeron® J6412 2.0GHz,(up to 2.6GHz, 4-Core, TDP 10W), 8GB DDR4 pre-installed memory, 10V~28V DC, 6xRS232, 2xRS-232/422/485, 2xUSB 3.2, 4xUSB2.0, 2xHDMI, 3x2.5GbE Lan, RoHS

Package Contents

  • 1 x 安装支架
  • 1 x 螺丝包
