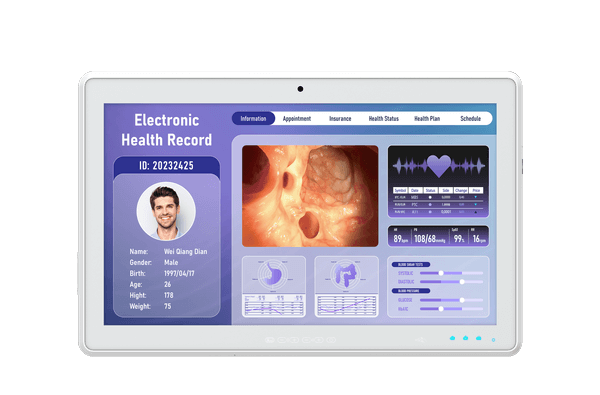

» 13th Gen Intel® Core™ i5/ i7 processor (Raptor Lake-P)
» Anti-bacteria housing with IP65 front bezel protection
» PCAP touch allows multi-touch, multi-layer gloves and water-on-screen operation
» Three hot-swappable batteries with a total runtime of 10-16 hours, ideal for non-powered medical carts
13th Generation Intel® Core™ i5 / i7 Processors
| Item | POCm-ULT3 | POCm-RPL | ||
| CPU | 6th Gen, code name: Skylake | 13th Gen, code name: Raptor Lake-P | ||
| i5-6300U | i7-6600U | i5-1340PE | i7-1370PE | |
| Process Node | 14 nm | Intel® 7 (10 nm) | ||
| Total Cores / Threads | 2 / 4 | 12 (4P + 8E*) / 16 | 14 (6P + 8E*) / 20 | |
| * P-core: High workload, low latency or single thread task * E-core: Low power consumption, high efficiency | ||||
| Cache | 3MB Intel® Smart Cache | 4 MB Intel® Smart Cache | 12MB Intel® Smart Cache | 24 MB Intel® Smart Cache |
| Memory Types | DDR4-2133 (max. 32 GB) | SO-DIMM DDR5 up to 4800 MT/s (max. 64 GB) | ||
| Processor Graphics | Intel® HD Graphics 520 (1.00 GHz / 1.05 GHz) | Intel® Iris® Xe Graphics eligible (1.45 GHz / 1.50 GHz) | ||
| Charging Method | Parallel | Parallel / Rolling | ||
Health and Durability Combined
Anti-bacteria housing:
The Secret of anti-bacteria housing
The introduction of metal ions with antimicrobial properties into the soluble glass structure allows the soluble glass to release stable and moderate amounts of antimicrobial metal ions in a moist or humid environment to achieve antimicrobial effects. The addition forms a semi-permanent antimicrobial surface layer within the material and does not evaporate.
Mouse-Free Interactions
- 22”/ 24” inches 10-point P-CAP touch
- 6H surface scratch resistance
- Multiple layers of surgical gloves
- Advanced water & fluid handling
5-layer medical gloves
Anti-Normal Saline and Blood
(containing 9.0 g of salt per liter (0.90%))
The Latest Wi-Fi 6E Module
AP capacity
Frequency band
Maximum
throughput speeds
TWT
8MP Front Camera
| POCm-ULT3 | POCm-RPL | |
| Front Camera | 5MP |
8MP
|
| CMOS Sensor Active Pixels | 2592 (H) x 1944 (V) |
3264 (H) x 2448 (V)
|
Flexibly Tailor Your DC Output Option
Configurable DC output
1 x DC output (12V/19V/24V, 20W)
Same Size, More Capacity
Compared to the previous generation, the battery capacity is 1.2x larger, and the charging speed is faster, saving up to 12% of charging time.
- Li-ion rechargeable battery pack
- 9000 mAh, 97.2Wh / one battery
- Only 460 grams in weight
- CB 62133, 2013/56/EU, UN-38.3+1.2M drop
IEI iScreen Manager
Energize Your Devices, Protect Your Privacy
Backlight auto-adjust
Sneak peek alert
- Detect user’s head in the detection area when the visual field is forward-facing the screen.
- When detecting user’s head, the POCm can adjust the backlight automatically.
ON
OFF
- Send alert to the user when other people want to peek the screen.
- It can help users to protect their privacy.
ON
I/O Interfaces & Dimensions
- 1AUXILIARY DC Out
- 2RS-232
- 3HDMI™
- 4USB 3.2
- 5DC IN
- 6Clear CMOS
- 7LAN
- 8USB-C
- 9AT/ ATX
- 10RESET
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 21.5” |
| LCD Resolution | 1920 x 1080 |
| LCD Brightness (cd/m²) | 350 |
| LCD Contrast Ratio | 1000:1 |
| LCD Color | 16.7M (RGB 8-bit) |
| LCD Pixel Pitch (mm) | 0.2745 (H) x 0.2745 (V) mm |
| LCD Viewing Angle (H-V) | 178˚/178˚ |
| LCD Backlight MTBF | 30000 |
| Touch Screen | PCAP |
| Touch Controller | EETI |
| Touch Surface Hardness | 6H |
| Camera | 8-megapixel CMOS front-facing camera |
| System | |
| Processor | 13th Gen Intel® Core™ i5-1340PE/ i7-1370PE (Raptor Lake-P) |
| Supported OS | Windows 11, Linux Ubuntu |
| Network | |
| Ethernet Controller | Intel® I226-V |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax, Intel® Wi-Fi 6E AX210 |
| Bluetooth | Bluetooth V5.2 |
| Storage | |
| Storage |
1 x 2.5” accessible SATA HDD bay 2 x M.2 2280 M key (PCIe) with RAID |
| RAM | 2 x 262-pin 4800MT/s dual-channel DDR5 SO-DIMM slots (system max. 64GB) |
| Expansion Slots | |
| Expansion Slots |
1 x PCIe Mini (PCIe) 1 x M.2 2230 A-E key (PCIe+USB) 2 x M.2 2260/80 B-M key (PCIe) |
| Audio | |
| Speaker | 2 x 2W speaker |
| Microphone | 1 x Digital mic |
| I/O Interface | |
| Side I/O |
1 x Mic in 1 x Audio out 2 x USB 2.0 port |
| Rear I/O |
1 x DC jack 1 x HDMI output 1 x USB Type-C (DP + USB 5V/3A) 1 x DC output (12V/19V/24V, 20watt) 2 x 2.5GbE LAN port 1 x RS-232 4 x USB 3.2 Gen 2 (10Gb/s) port |
| Indicator&Buttons | |
| Buttons | 1 x Power on/off |
| Indicators |
1 x RFID indicator 1 x Power indicator 3 x Battery indicator (color: blue/red) |
| Other Features | |
| OSD Function |
1 x Power on/off 1 x Volume up 1 x Volume down 1 x Brightness up 1 x Brightness down 1 x LCD on/off and touch lock for cleaning |
| Physical Characteristics | |
| Thermal | Fanless |
| Construction Material | ABS+PC plastic |
| Mounting |
Wall, Stand and Arm VESA 75/100 compliant |
| Weight (Net) (kg) | 6.85 kg (without battery) |
| Weight (Gross) (kg) | 8.32 kg (with 3 batteries) |
| Dimensions (LxWxH) (mm) | 543 x 350 x 61 |
| Power | |
| Input | 19V DC input |
| Output | 1 x DC output (12V/19V/24V, 20 watt) |
| Power Adapter | 150W medical power adapter |
| Environment | |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing) |
| Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Non-operating shock | 15G peak acceleration (11ms duration) |
| IP Level | Front: IP65 |
| Certifications | |
| Safety & EMC | CE, FCC Class B Part18, UL 60601-1, IEC/EN 60601-1, IEC/EN 60601-1-2 |
Ordering Information
| POCm-W22CR-RPL-i7/PC-R10 | 21.5" 250cd/m² FHD CR 3000 medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i7-1370PE 4.8GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen,8M camera,D-mic,w/o battery,R10 |
|---|---|
| POCm-W22CR-RPL-i5/PC-R10 | 21.5" 250cd/m² FHD CR 3000 medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i5-1340PE 4.5GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen,8M camera,D-mic,w/o battery,R10 |
| POCm-W22C-RPL-i7/PC-R10 | 21.5" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i7-1370PE 4.8GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen,8M camera,D-mic,w/o battery,R10 |
| POCm-W22C-RPL-i5/PC-R10 | 21.5" 350cd/m² FHD medical panel PC with 13th generation 10nm Intel®Raptor Lake-P Core™ i5-1340PE 4.5GHz on-board processor,802.11a/b/g/n/ac/ax Wi-Fi 6E module,PCAP touchscreen,8M camera,D-mic,w/o battery,R10 |
Package Contents
| Package Content |
|
|---|
