» IP65 front bezel
» 2 variable DC outputs
» 10-point PCAP touchscreen
» Supporting up to 3 pcs 9000mAh hot swappable battery pack
» Intelligent working station
» 23.8” FHD medical monitor
» Internal Wi-Fi antenna

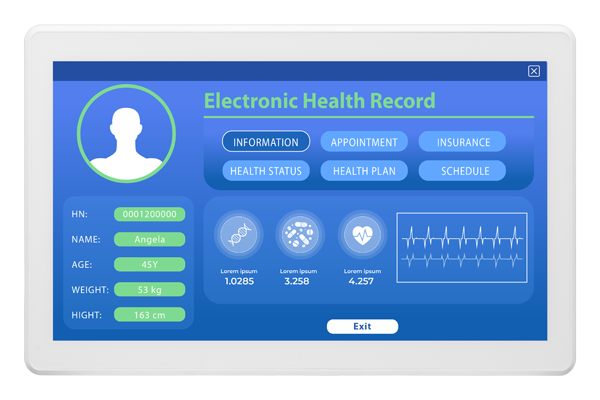

24” Mobile Medical Monitor Empowering Healthcare Mobility
The IEI 24" Mobile Medical Monitor, MPOCm-W24, is designed for nonpowered carts, offering 24/7 runtime with three hot-swappable batteries and short charging time. This ensures caregivers remain focused on patient care without interruptions. Its dual DC outputs reduce cable clutter and free up cart space, enhancing mobility and efficiency.
More affordable and lightweight than powered carts, the MPOCm-W24 provides the flexibility to move seamlessly across various mobile healthcare settings while delivering continuous, reliable performance.
1920 x 1080 Resolution TFT LCD with Glove-Friendly PCAP Multitouch
24/7 Runtime with Three Hot-Swappable Batteries
DC-Output to Power Computer and Peripherals
IP65 Sealed Front Panel for Easy Cleaning and Infection control
Embedded WiFi Antennas
Intelligent Battery Management
USB Hub Integration
Easy Cable Management
For Cost-Effective and Lightweight
Non-Powered Medical Cart Solution
There's nothing more frustrating for a nurse than starting a shift only to find the nursing cart battery is dead or flat. This not
only disrupts workflow but also delays patient care. The IEI MPOCm-W24 eliminates these frustrations with long battery
runtime, quick recharges, and seamless power.
Extended Runtime: The MPOCm provides a 12 to 16-hour runtime per charge, easily covering an entire nursing shift.
Fast Charging: The batteries charge in just 3 hours, significantly reducing downtime and making the computer cart more readily available for use.
Cost Savings: Non-powered carts are generally less expensive than powered carts, both in initial purchase and ongoing maintenance.
Lightweight and Enhance Mobility: The MPOCm-W24’s three batteries weigh a total of just 1.5 kg, compared to traditional batteries that weigh 7-12 kg, reducing the cart's weight by up to 10 kg. This makes the cart easier to handle and less physically demanding for nurses.
*Note: Battery runtime is calculated based on the use of three batteries with the system running at full load, without the use of the two DC outputs for additional equipment.
Fast Charge
Stackable Charging Station
Part Number:
POCm-DOCKING-6BAY-R11
Cons of Traditional Batteries:
-Short Battery Life
-Long Recharging Time
-Inconvenient Charging Locations
-Heavy Weight
Three Hot-Swappable
Batteries for
Easy Maintenance
Large 9000mAh / 97.2Wh high-capacity lithium-ion battery packs.
You can add or replace batteries without turning off the monitor system or disrupting its operation, reducing downtime.
Battery Pack - TC-202GA Optional
Part Number: 31603-000106-RS
Life Cycle Breakthrough
IEI's latest TC-202GA Battery features the new generation battery cell with the innovative discharge mechanism, which reduces the power decline rate, thereby doubling the battery's life cycle.
Parallel Charge Maximizes
the Battery's Efficiency
The MPOCm-W24 dynamically adjusts the charging and discharging order based on voltage differences between the batteries, prioritizing the battery with the highest or lowest voltage to achieve balance, thereby maximizing charge and discharge efficiency.
Paired with Box PCs
With a separate system setup, you gain the flexibility to choose the best combination of monitor and box PC to meet specific needs, while also enjoying easier maintenance and upgrades, as individual components can be replaced or upgraded independently, reducing downtime and costs.
TANGO-3010
Palm-Sized Industrial Box PC
HTB-150-N6210
Medical Grade Box PC
Where to Use
The MPOCm-W24 is the perfect choice for various nonpowered medical cart applications, thanks to its lightweight design, anti-vibration features, and high performance battery system.
Medication
Dispensing Cart
Nursing Cart
Dual Monitor
Medical Cart
105W Dual DC Outputs
For Computer and Peripherals
With multiple power outputs, the MPOCm-W24 not only supports charging the computers but also supplies power to peripherals when mounted on a rolling cart. It can provide up to 105 watts of power to two devices simultaneously.
| Power Condition | Maximum Power Provision for DC Out1 + DC Out2 |
| 1 x TC-202GA Battery Pack Installed | 19.98 Watt |
| 2 x TC-202GA Battery Packs Installed | 60.53 Watt |
| 3 x TC-202GA Battery Packs Installed | 105 Watt |
| Power Adapter without Battery Packs | 105 Watt |
* The premise above is that the MPOCm-W24 is under full loading at 31W
Medical Box PC
Mobile thermal printer
Barcode reader
Card reader
The easy-to-configure switch for two DC outputs allows you to adjust power settings without the need to open the system, reducing downtime and minimizing the risk of system disruption.
DC OUT1
DC OUT2
Note:
• Please ensure the user powers on the device and verifies the voltage output is correct (using a voltmeter or app) before connecting the device.
• Warning! Please ensure the user sets the power switch exactly as described in the instructions. Incorrect settings may result in an abnormal voltage of 31.5V.
• If a power output short circuit occurs, the system will enter protection mode. After the short circuit condition is resolved, the user needs to restart the device for the DC output to resume power supply.
Glove Detectable and
Water Handling Multitouch Screen
-No false signals are generated when water, saline, or blood—high dielectric constant liquids—splash onto the touch surface.
-Allows caregivers to operate normally whether wearing multi-layer medical gloves or wet hands.
-10-point multitouch you can zoom in on medical images or multitask on a single screen.
Medical Gloves
5
Layer
Compatible with
Anti-Normal
Saline & Blood
(containing 9.0 g of salt per liter (0.90%))
IP65-Rated for Superior
Disinfectant-Tolerant
The MPOCm-W24, featuring a drip-proof enclosure, IP65 front panel, and 7H surface hardness, is designed to endure frequent cleaning and disinfection with alcohol or diluted bleach, ensuring reliable operation and exceptional patient care.
Optimize Your Workspace
with Cable Simplicity
The streamlined cable setup eliminates clutter, ensuring a clean, organized workspace that supports efficient and seamless workflows.
Embedded Wireless Antennas
The WiFi/Bluetooth connectivity still works well when the Box PCs are mounted or stored in a medical cart.
2 x SMA-Female WiFi Antenna Connectors
USB 3.0 Gen 1 Type B
Upstream
USB 3.0 Gen 1 Type A
Downstream
Integrated USB Hub
With an integrated USB 3.0 Gen 1 (5Gbit/s) hub, the device reduces desk clutter and provides extensive connectivity options for USB peripherals, eliminating the need to bend down to find the USB ports on the computer unit.
Convenient Cable
Management
A smooth and elegant cable cover conceals the cables, ensuring the devices are easier to use and maintain.
Centralized Remote Battery Monitoring
IEI’s Remote Battery Monitoring solution offers precise and continuous monitoring, optimizing battery efficiency, extending run times, and reducing costs. This solution also prevents human errors and eliminates unnecessary and costly truck rolls.
Remote Battery Management Utility
The Battery Remote Utility for Windows and Linux enables IT supervisors to remotely monitor the battery status of MPOCm monitors within the same subnet.
Local Battery Management Utility
The Local Battery Management Utility displays the current status and information of the battery system for users. Low battery capacity triggers an alert message and beep sound.
True Flat OSD
Hot Key
To adjust the brightness, audio, and contrast, simply press a function button, and the menus will pop up on the touchscreen.
Intuitive Battery
Status Indicators
The four-stage battery capacity is visually displayed, allowing for quick viewing of the current battery status and wear condition.
I/O Interface
Dimensions (Unit: mm)
Hardware Spec.
| Display | |
|---|---|
| LCD Size | 23.8” |
| LCD Resolution | 1920 x 1080 |
| LCD Brightness (cd/m²) | 250 |
| LCD Contrast Ratio | 1000:1 |
| LCD Color | 16.7M RGB 6-bit (Hi-FRC) |
| LCD Pixel Pitch (mm) | 0.2745 (H) x 0.2745 (V) mm |
| LCD Viewing Angle (H-V) | 178˚/178˚ |
| LCD Backlight MTBF | 30000 |
| Touch Screen | PCAP |
| Touch Controller | EETI |
| Touch Surface Hardness | 6H |
| Audio | |
| Speaker | 2 x 2W speaker |
| I/O Interface | |
| Rear I/O |
1 x HDMI-in 1 x DC-in jack 1 x USB 2.0 (black B-type) for Touch 1 x USB 3.2 Gen1 (blue B-type) 2 x USB 3.2 Gen1 (blue A-type) 2 x Wi-Fi SMA connector(main/aux) 2 x Variable Voltage DC Power output for External Devices (55W in total) DC OUT1: Selectable 19V, 24V (maxium of 55 watts) DC OUT2: Selectable 5V, 12V, 15V, 19V,24V (maxium of 50 watts or 3.5A) *Under Battery Mode, at least 3 batteries are inserted as DC output ports enabled. |
| Indicator&Buttons | |
| Buttons | 1 x Power on/off |
| Indicators |
1 x Power Indicator 3 x Battery Indicator (color: blue/orange) |
| Other Features | |
| OSD Function |
1 x Power on/off 1 x Volume up 1 x Volume down 1 x Brightness up 1 x Brightness down 1 x LCD on/off and touch lock for cleaning |
| 物理特性 | |
| Thermal | Fanless |
| Construction Material | ABS+PC plastic |
| Mounting | Wall, Stand and Arm; VESA 75/100 compliant |
| Weight (Net) (kg) | 8.18 kg (without battery) |
| Weight (Gross) (kg) | 9.53 kg (with 3 batteries) |
| 尺寸 (LxWxH) (mm) | 594.6 x 379.6 x 63.2 |
| Battery | |
| Battery Pack Type | 3 x 3S3P cells Lithium-ion Battery |
| Battery Pack Capacity | Support up to 3 pcs 9000mAh hot swappable battery pack |
| Normal Voltage | 10.8 V |
| Battery Life Time | 500 cycles (FCC >= 70% of the minimum capacity) |
| Continuous Charge Current | 4 A for each battery pack |
| Continuous Discharge Current | 5 A for each battery pack |
| Discharge Cut-off Voltage | 9 V |
| 电源 | |
| Input | 19V DC input |
| Output |
DC OUT1: Selectable 19V, 24V (maxium of 55 watts) DC OUT2: Selectable 5V, 12V, 15V, 19V,24V (maxium of 50 watts or 3.5A) |
| Power Adapter | 150W medical power adapter |
| 环境 | |
| 操作温度 | 0°C ~ 40°C |
| 存储温度 | -20°C ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing) |
| Vibration | 1G |
| Operating Shock | 5G peak acceleration (11ms duration) |
| Non-operating shock | 15G peak acceleration (11ms duration) |
| IP Level | Front: IP65 |
| 认证 | |
| Safety & EMC |
FCC Part15B EN 62368-1 Ed.2 (60601-1 Compatible) EN 55032 + EN 55035 (60601-1-2 Compatible) Battery Pack: UN38.3, IEC62133, IEC62368-1, UL2054 |
Ordering Information
| MPOCm-W24/PC-R10 | 23.8" 250cd/m² FHD Medical Monitor, 2* DC output, PCAP touchscreen, Support 3* TC-202 Battery, R10 |
|---|---|
| MPOCm-W24-R10 | 23.8" 250cd/m² FHD Medical Monitor, 2* DC output, Support 3* TC-202 Battery, R10 |
Package Contents
| Package Content |
|
|---|
