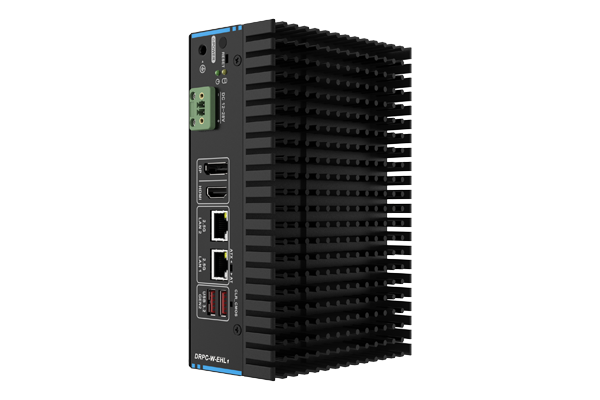

DRPC-W-EHL1

无风扇 DIN 导轨嵌入式系统，Intel® Elkhart Lake Atom™x6000系列解决方案

DRPC-W-EHL1_IO
DRPC-W-EHL1_right
DRPC-W-EHL1_left
  • DRPC-W-EHL1_IO
  • DRPC-W-EHL1_right
  • DRPC-W-EHL1_left
» 支持 Intel® Elkhart Lake Atom™ x6000 系列板载 SoC
» 支持两个独立显示
» 高速 I/O 接口，USB 3.2 gen 2, SATA 6Gb/s
» 双 2.5 GbE 局域网与英特尔® I225-IT
» 支持 1 个 M.2 A Key 和 1 个 M.2 B Key

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • Supported CPU:
    板载 Intel®Elkhart Lake Atom™x6000系列/ Pentium®/ Celeron® 处理器
    Intel®Atom™x6211E 板载 SoC (高达 3.00 GHz，双核，1.5M 缓存, TDP=6W)
    Intel®Atom™x6413E 板载SoC (高达 3.0GHz，四核，1.5M 缓存, TDP=9W)
    Intel®Atom™x6425E板载SoC (高达 3.0GHz，四核，1.5M 缓存, TDP=12W)
  • 芯片组:
    SoC
  • 系统内存:
    板载LPDDR4X 3200MHz 8G (最大支持到16GB)
  • 电源:
    直流插孔: 12V ~ 28V 直流输入
    功耗:12V@3.65A ( Intel x6425E with 8GB LPDDR4X )
I/O Interface
I/O Ports
  • USB:
    2 x USB 3.2 Gen 2
  • 网络:
    2 x 2.5 GbE by Intel ® I225-IT
  • 显示:
    1 x HDMI
    1 x DP
  • TPM:
    支持 Intel PTT
  • 看门狗定时器：
    可编程 1 ~ 255 秒/分钟
Expansion Slots
Expansion Slots
  • M.2:
    1 x 2230 M.2 A Key (PCIe Gen3 x2 & USB 2.0)
    1 x 3042 M.2 B Key (PCIe Gen3 x2 & USB 2.0)
System
Cooling method / System Fan 无风扇
4 针外部系统风扇连接器
Drive Bays 1 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x 电源开关
1 x 复位开关
1 x CMOS清除开关
Indicators 1 x 电源灯
1 x 硬盘灯
Physical Characteristics
Construction 铝合金
Color
Color 黑色
Dimensions
Dimensions 176 x 116 x 60.8 (mm)
Weight
Weight 1.03 Kg
Environment
工作温度 -20°C ~ 70°C 有气流
相对湿度 10% ~ 95% 无冷凝
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis
Operating Shock 10-500 Hz,1.04 Grms, random, 1 hr/axis
安规&电磁 符合CE/FCC认证
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

DRPC-W-EHL1-x6425EC-R10 Fanless System with onboard Intel® Celeron® x6425E processor, 2 x 2.5GbE Lan, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, onboard LPDDR4X 3200MHz 8G memory, 12-28V DC, RoHs
DRPC-W-EHL1-x6413EC-R10 Fanless System with onboard Intel® Celeron® x6413E processor, 2 x 2.5GbE Lan, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, onboard LPDDR4X 3200MHz 8G memory, 12-28V DC, RoHs
DRPC-W-EHL1-x6211EC-R10 Fanless System with onboard Intel® Celeron® x6211E processor, 2 x 2.5GbE Lan, 2 x USB 3.2 Gen2, 1 x HDMI, 1 x DP, 1 x 2.5'' SATA HDD bay, onboard LPDDR4X 3200MHz 8G memory, 12-28V DC, RoHs

Package Contents

Package Content

  • 1 x DIN导轨安装支架

  • 1 x 螺丝包
