End of Life Notice
* Effective Date: 2025/04/03

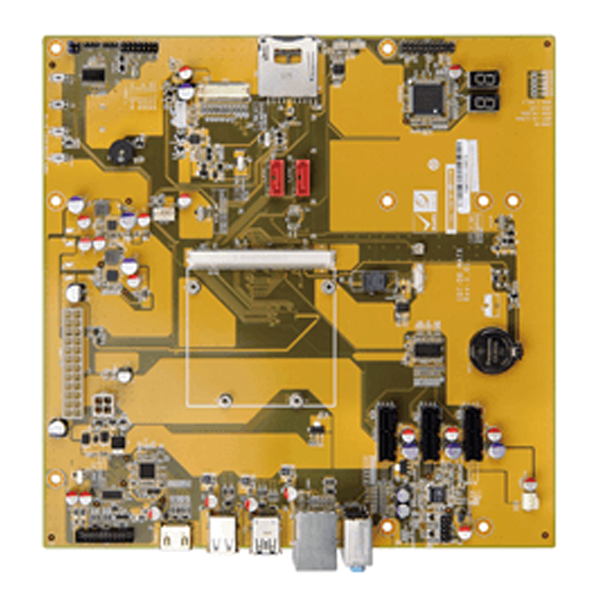

» mATX form factor baseboard for Qseven Rev. 2.0 module
» Supports three PCIe x1
» 18/24-bit dual-channel LVDS
» Supports iRIS-2400/iRIS-2100
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 243.8 X 243.8 |
| Storage | |
| Storage | 2 x SATA |
| 1 x SD/MicroSD card | |
| I/O Interface | |
| Display Output | 1 x HDMI™ |
| 1 x LVDS | |
| 1 x iDP | |
| Ethernet | 1 x LAN :RJ45 |
| Audio | Description: Realtek ALC662 HD Audio codec |
| 1 x Line in | |
| 1 x Line out | |
| 1 x Mic | |
| I/O Interface | 5 x External USB 2.0 |
| 1 x External USB 3.2 Gen1x1 | |
| Expansion | 3 x PCIe x1 |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Supply | Support AT/ATX mode |
| Environment | |
| Operating Temperature | -40°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| iQ7-DB-MATX-R10 | Base Board for Qseven® Rev. 2.0 module |
|---|
