» PCI Express Mini supports dual RS-232/422/485 and 16-bit GPIO ports
» 128 bytes transmit/receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 1.5M
» All GPIO supports digit IO for input/output control, output data control, input status
» Support High/Low Level/Pulse, Open Drain/Push Pull function selection
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | PCI Express Mini Card |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 51 X 30 |
| Net Weight | 50g |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -10°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
| Card Slot Interface | |
| PCIe | Mini card |
Ordering Information

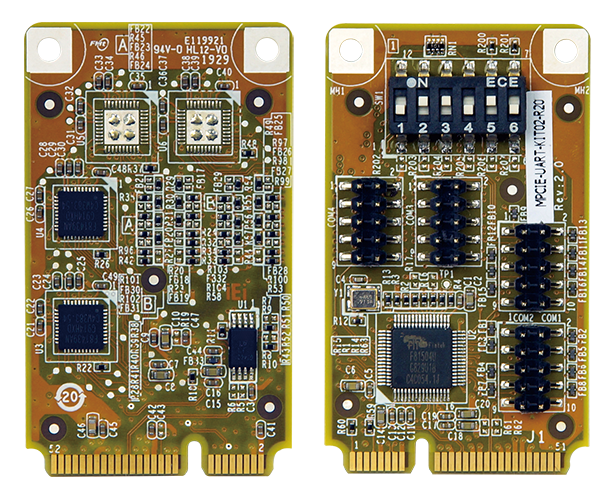

| MPCIE-UART-KIT02-R20 | PCI Express Mini supports Dual RS-232/422/485 , 16 bit GPIO module, Full size, RoHs |
|---|---|
| E-MPCIE-UART-KIT02-R20 | PCI Express Mini supports Dual RS-232/422/485 , 16 bit GPIO module, Full size, for E-Window, RoHs |
