End of Life Notice
* Effective Date: 2017/09/04

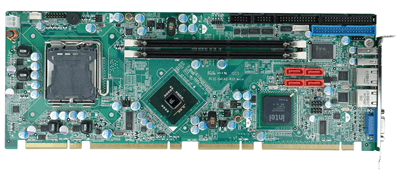

» PICMG 1.3 form factor
» Supports LGA 775 Intel® Core™2 Extreme/Quad/Duo and Celeron® processors, up to 1333 MHz FSB
» Dual-channel DDR3 800/1066 MHz memory supports up to 8 GB
» High performance PCI Express Gigabit Ethernet controller
» Four SATA 3Gb/s with Intel® Matrix Storage Manager support Raid 0, 1, 5 and 10
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Supports LGA 775 Intel® Core™2 Extreme/Quad/Duo and Celeron® processors, up to 1333 MHz FSB
» Dual-channel DDR3 800/1066 MHz memory supports up to 8 GB
» High performance PCI Express Gigabit Ethernet controller
» Four SATA 3Gb/s with Intel® Matrix Storage Manager support Raid 0, 1, 5 and 10
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | CPU |
|---|---|
| Chipset | Intel® G41+ ICH7R |
| Memory Max. |
Two 240-pin 4GB (max.) 800/1066MHz dual-channel DDR3 SDRAM DIMMs supported (System max. 8GB) |
| CPU Socket | LGA775 |
| I/O Interface | Ethernet |
| Digital I/O | 8-bit Digital I/O (4-bit input/4-bit output) |
| Display | |
| Audio |
5.1 channel audio kit with Realtek ALC655 AC’97 codec 7.1 channel HD audio kit with Realtek ALC888 codec supports dual audio streams |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95%, non-condensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 1 x VGA | |
| 2 x USB 2.0 | |
| 6 x Internal USB 2.0 | |
| 2 x Internal RS-232 |
Ordering Information
| PCIE-G41A2-R10 | Full-size PICMG 1.3 CPU Card Supports LGA775 Intel Core 2 Quad Processor with DDR3,VGA,Dual PCIe GbE,SATAII,COM and USB 2.0,RoHS |
|---|
