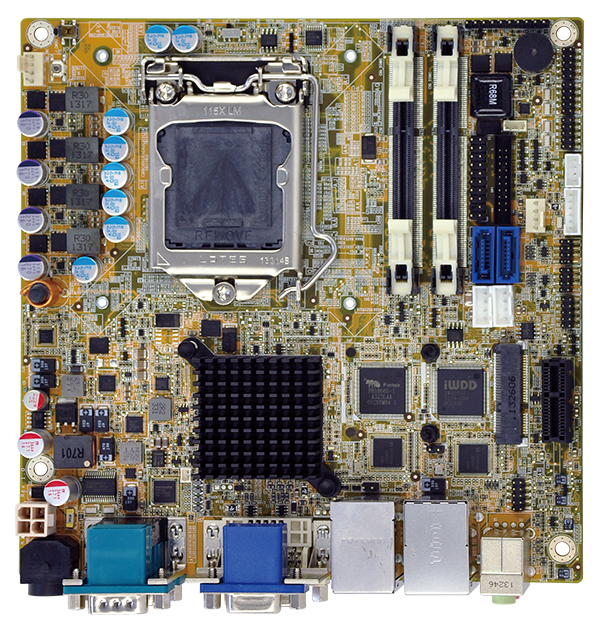

» 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» DDR3 1066/1333/1600 MHz dual-channel SDRAM
» 3D micro-architecture enhancement supports DX11.1, OCL 1.2 and OGL3.2
» Rich media acceleration for hardware decode and encode acceleration
» High-speed I/O interface for USB 3.0, SATA 6Gb/s and mSATA
» IEI Jumper-less function
Hardware Spec.
| 系统 | |
|---|---|
| CPU | 4th generation LGA1150 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| 芯片组 | Intel® H81 |
| 内存 | Two 204-pin 1600/1333 MHz dual-channel DDR3 SDRAM unbuffered SO-DIMM |
| 内存上限 | 16GB |
| 物理特性 | |
| 尺寸 (LxWxH) (mm) | 170 X 170 |
| 净重 | 450g |
| 存储 | |
| 存储 | 2 x SATA :6Gb/s with SATA power connector |
| I/O 接口 | |
| 显示输出 | 1 x VGA :up to 1920x1200@60Hz |
| 1 x DVI-D :up to 2560x1600@60Hz | |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| 网络 | 2 x LAN Intel® I211-AT PCIe controller |
| 音频 | 描述: Realtek ALC662 HD Audio codec |
| 1 x Line out :on rear IO | |
| 1 x Mic :on rear IO | |
| 1 x Front Audio :2x5 pin | |
| I/O接口 | 2 x External RS-232 |
| 3 x 内部RS-232 :2x5 pin, p=2.0 | |
| 1 x Internal RS-422/485 :1x4 pin, p=2.0 | |
| 2 x 外部 USB 2.0 | |
| 2 x 外部 USB 3.2 Gen1x1 | |
| 4 x 内部 USB 2.0 :2x4 pin, p=2.0 | |
| 扩展 | 1 x PCIe x1 |
| 1 x PCIe mini Card Slot :Full-Size slot(support mSATA) | |
| Other Features | |
| TPM | 2x10 pin |
| 电源 | |
| 电源功耗 |
+12V@6.03A (Intel® Core™ i7-4770K 3.90 GHz CPU with two 1333 MHz 4 GB DDR3 memory) |
| 电源供电 |
12V only DC input 1 x External DC jack (4-pin DIN) 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| 环境 | |
| 操作温度 | -20°C ~ 60°C |
| 存储温度 | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| 认证 | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| KINO-DH810-R10 | Mini-ITX SBC support LGA1150 CPU, DVI-D /VGA / iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio and RoHS |
|---|---|
| KINO-DH810-ECO-R10 | LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® CPU, DDR3, DVI-D, VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, ECO packing and RoHS |
Package Contents
| Package Content |
|
|---|
