End of Life Notice
* Effective Date: 2020/12/31

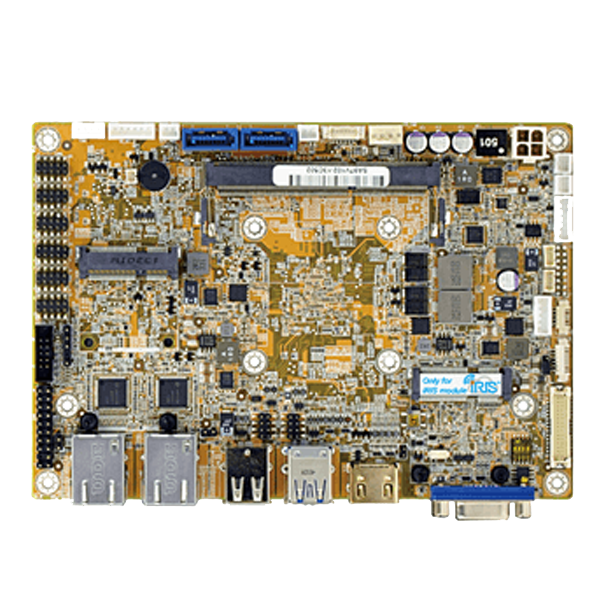

» EPIC SBC supports AMD® Embedded G-Series SoC
» Dual independent display support
» 1.35V DDR3L 1600/1333 MHz SDRAM supports up to 8 GB
» HD Audio supported by S/PDIF
» Support IPMI 2.0 with iRIS-1010 module
» COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | |
|---|---|
| CPU |
AMD® Embedded G-Series ”Steppe Eagle” SoC GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W) AMD® Embedded G-Series ”eKabini” SoC GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W) AMD® Embedded G-Series ”LX” SoC GX-210KL on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=4.5W) |
| Memory | One 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered SO-DIMM |
| Memory Max. | 8GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 115 X 165 |
| Net Weight | 350g |
| Storage | |
| Storage | 2 x SATA :6Gb/s with 5V SATA power connector(no RAID) |
| I/O Interface | |
| Display Output | 1 x VGA :up to 2048x1536@60Hz |
| 1 x HDMI™ :up to 3840x2160@60Hz | |
| 1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I210-AT PCIe controller with NCSI support LAN2: Intel® I211-AT PCIe controller |
| Audio | Description: Realtek ALC892 HD Audio codec |
| 1 x S/PDIF :1x4 pin | |
| 1 x Speaker :2x5 pin | |
| I/O Interface | 5 x Internal RS-232 :2x5 pin, p=2.0 |
| 1 x Internal RS-422/485 :1x4 pin, p=2.0 | |
| 2 x External USB 2.0 | |
| 2 x External USB 3.2 Gen1x1 | |
| 4 x Internal USB 2.0 :2x4 pin, p=2.0 | |
| 1 x PS/2 :1x6 pin | |
| Expansion | 1 x PCIe mini Card Slot :Full-Size(support mSATA co-lay SATA port 2) |
| Other Features | |
| TPM | 2x10 pin |
| Power | |
| Power Consumption |
12V@1.02A (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8 GB DDR3 memory) |
| Power Supply |
12V only DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -10°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| NANO-KBN-i1-4151-R10 | EPIC SBC supports AMD® 28nm Quad-Core 1.5GHz (15W) on-board SoC with DVI-I/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, iRIS-1010 and Audio |
|---|---|
| NANO-KBN-i1-2101-R10 | EPIC SBC supports AMD® 28nm Dual-Core 1.0GHz (9W) on-board SoC with DVI-I/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA , COM, iRIS-1010 and Audio |
Package Contents
| Package Content |
|
|---|
