End of Life Notice
* Effective Date: 2017/12/30

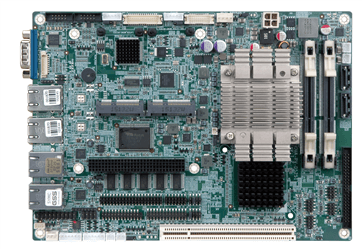

» 5.25” SBC supports Intel® Atom™ D525/D425 processor
» 800/1066 MHz DDR3 supports up to 4 GB
» VGA/18-bit single-channel/24-bit dual-channel LVDS for dual independent display support
» Quad PCIe Ethernet, two SATA 3Gb/s, and six RS-232 serial port connectors
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| CPU Cooler | |
|---|---|
| CPU Cooler | N/A |
| Display | |
| Display |
Dual display supported VGA (up to 2048x1536@60Hz) 18-bit single-channel LVDS (up to 1366x768@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots |
1 x PCI-104 2 x Full-size PCIe Mini card slot 1 x PCI |
| I/O Interface | |
| Audio | Realtek ALC662 HD Audio codec |
| Digital I/O | 1 x 24-bit digital I/O (2x15 pin) |
| Ethernet | LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support |
| I/O Interface | |
| I/O Interface | 1 x RS-232 |
| 7 x Internal RS-232 | |
| 8 x Internal USB 2.0 | |
| 1 x LPT | |
| Power | |
| Power consumption |
12V@1.46A (Intel® Atom™ D525 1.8GHz with two 800 MHz 1 GB DDR3 SO-DIMM) |
| Storage | |
| Storage |
1 x CF Type II 1 x IDE 2 x SATA 3Gb/s with 5V SATA power connector (no RAID) |
| System | |
| Chipset | Intel® ICH8M |
| CPU |
1.8GHz Intel® Atom™ D525 dual-core processor with 1MB L2 cache |
| Memory Max. |
Two 204-pin 800 MHz DDR3 SDRAM SODIMM supports up to 4 GB |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. |
Ordering Information
| NOVA-PV-D5251-G2L2-R12 | 5.25" SBC,Intel Dual Core Atom D525 1.8GHz,DDR3,18+48 bits LVDS/VGA,Dual PCIe Mini,Dual PCIe GbE,USB2.0,SATAII,Audio,RoHS |
|---|---|
| NOVA-PV-D5251-G4-R12 | 5.25" SBC,Intel Dual Core Atom D525 1.8GHz,DDR3,18 bits LVDS/VGA,Dual PCIe Mini,Quad PCIe GbE,USB2.0,SATAII,Audio,RoHS |
Package Contents
| Package Content |
|
|---|
