End of Life Notice
* Effective Date: 2020/08/13

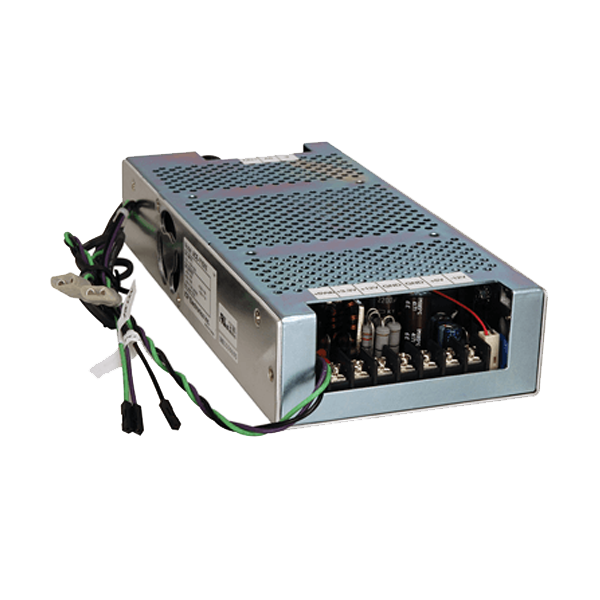

1U 24V DC Input ATX Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 198 x 97 x 39 |
| Efficiency | 75% |
| MTBF | 100,000 |
| Operating temperature | -20°C ~ 70°C (50°C ~ 70°C derating curve) |
| Output Connector | 5VSB & PS_ON cable |
| Storage temperature | -20°C ~ 85°C |
| Watt | 170W |
| Input | |
| Voltage | 19 ~ -32 VDC |
| Output | |
| Voltage | +3.3V/6A,+5V/8A,+12V/8A/-12V/0.5A,+5Vsb/1A |
Ordering Information
| ACE-717CX-RS | 170W 24V DC Input ATX power supply;CCL;RoHS |
|---|
