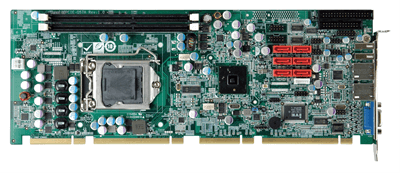

» PICMG 1.3 with LGA 1156 socket for Intel® Core™ i7/i5/i3 or Pentium® processor
» Supports 8 GB (max.) dual-channel 800/1066/1333 MHz DDR3 SDRAM
» Intel® GbE LAN controller with Intel® AMT 6.0 support
» Fourteen USB 2.0 ports and two COM ports
» Six SATA ports with RAID function
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| CPU Cooler | |
|---|---|
| CPU Cooler |
CF-1156A-RS-R11 CF-1156E-R11 |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 140°F) |
| Expansion Slots | |
| Expansion Slots | N/A |
| I/O Interface | |
| Audio |
IEI AC-KIT-892HD-R10 7.1-channel HD audio kit via the on-board 10-pin header connector |
| Digital I/O | 8-bit Digital I/O |
| Display | 1 x VGA |
| Ethernet |
LAN1: Intel® 82583V PCIe GbE controller LAN2: Intel® 82578DM with Intel® AMT 6.0 supported by iEZman software UI |
| I/O Interface | |
| I/O Interface | 12 x Internal USB 2.0 |
| 1 x KB/MS | |
| 1 x LPT | |
| 2 x USB 2.0 | |
| 1 x VGA | |
| Power | |
| Power consumption |
3.3V@0.89A, 5V@4.62A, 12V@4.35.A, 5Vsb@0.14A (Intel® Core™ i5 660 3.3GHz CPU with two 2GB 1066 MHz DDR3 memory) |
| Storage | |
| Storage |
6 x SATA 3Gb/s (RAID 0/1/10/5) 1 x FDD |
| System | |
| Chipset | Intel® Q57 |
| CPU |
Intel® Core™ i7/i5/i3, PentiumR processor |
| CPU Socket | LGA1156 |
| Memory Max. |
Two 240-pin 1066/1333MHz dual-channel DDR3 SDRAM DIMMs (system max. 8GB) |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
Ordering Information
| PCIE-Q57A-R10 | PICMG 1.3 with LGA1156 socket for Intel Core processor with VGA,Dual Intel GbE,SATAII, COM,USB 2.0 and Audio,RoHS |
|---|
