PCISA-PV-D4251/N4551/D5251

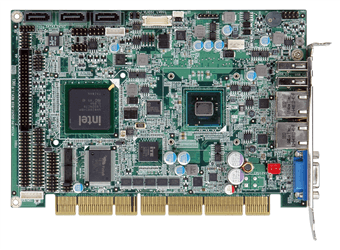

Half-size PCISA CPU Card with Intel® Atom™ D425/N455/D525

End of Life

End of Life Notice

* Effective Date: 2017/12/30

» PCISA CPU card supports PCI and ISA bus expansion
» Supports Intel® Atom™ D525/D425/N455 processor
» Supports VGA and 18-bit single-channel LVDS with dual display
» Supports 800 MHz DDR3 SDRAM SO-DIMM up to 4 GB for D525/D425 and 2 GB for N455
» Supports four COM, six USB 2.0, three SATA 3Gb/s, IDE and CF Type II
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

Hardware Spec.

System
CPU (1.80GHz/1MB L2 cache)
Intel® Atom™ D425 single-core processor
I/O Interface
Digital I/O 1 x 8-bit digital I/O (2x5 pin)
Storage
Storage 1 x CF Type II 1 x KB/MS
1 x FDD
1 x IDE
3 x SATA 3Gb/s
Environment
Operating Temperature -20°C ~ 60°C
Expansion Slots
Expansion Slots 4 x PCI bus support
ISA bus support by ITE IT8888G PCI
to ISA bridge
Power
Power consumption 5V@3.25A, 12V@0.48A (Intel® singlecore
Atom™ D425 1.80GHz with 1GB
1066MHz DDR3 memory)
I/O Interface
Display Analog CRT up to 2048x1536 for D525/D425,
1400x1050 for N455
Supports for CRT hot plug
18-bit single-channel LVDS supports resolution
up to WXGA 1366x768 or XGA 1024x768
System
Chipset Intel® ICH8M
I/O Interface
I/O Interface 4 x Internal USB 2.0
I/O Interface
Ethernet LAN1: Realtek RT8111E with ASF 2.0 support
LAN2: Realtek RT8111E
I/O Interface
I/O Interface 1 x LPT
System
CPU Socket On Board
Memory Max. One 204-pin 800MHz DDR3 SDRAM SO-DIMM
supported (system max. 4GB for D525/D425
and 2GB for N455)
I/O Interface
Audio Realtek ALC888 HD codec
I/O Interface
I/O Interface 3 x RS-232
1 x RS-422/485
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset
I/O Interface
I/O Interface 2 x USB 2.0

Ordering Information

PCISA-PV-D4251-R10 Half-size PCISA CPU card with Intel Single Core Atom D425 1.80GHz/512KB L2 cache,VGA/LVDS,Dual PCIe GbE,USB2.0,4 COM,3 SATA II and Audio,RoHS
PCISA-PV-D5251-R10 Half-size PCISA CPU card with Intel Dual Core Atom D525 1.80GHz/1MB L2 cache,VGA/LVDS,Dual PCIe GbE,USB2.0,4 COM,3 SATA II and Audio,RoHS
PCISA-PV-N4551-R10 Half-size PCISA CPU card with Intel Single Core Atom N455 1.66GHz/512KB L2 cache,VGA/LVDS,Dual PCIe GbE,USB2.0,4 COM,3 SATA II and Audio,RoHS

Download Specs.
