End of Life Notice
* Effective Date: 2022/04/29

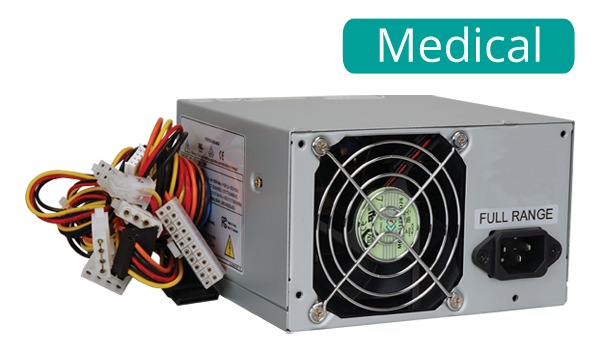

» Internal 8 cm fan
» Meets medical safety standards
» Line input fuse protection
» Output overvoltage protection
» Short circuit protection on all outputs
» Total +12 V output up to 34 A
Hardware Spec.
| General | |
|---|---|
| Dimensions | 140 x 150 x 86 |
| Efficiency | 68% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 5 x HDD/CDROM,2 x FDD, 2 x SATA, 1 x Extra +5V (P10) |
| Storage temperature | -20°C ~ 80°C |
| Watt | 400W |
| Input | |
| Voltage | 90~265 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 8 A (RMS) for 115 VAC, 4 A (RMS) for 230 VAC |
| Inrush Current | 60 A max. for 115 VAC, 100 A max. for 230 VAC |
| Output | |
| Voltage | +3.3V/30A,+5V/30A,+12V1/17A,+12V2/17A,-5V/0.3A,-12V/0.8A,+5Vsb/2A |
| Over Voltage Protection |
5V: 5.7V-6.5V +12V 13.3V-15.6V 3.3V: 3.7V-4.5V |
Ordering Information
| ACE-4840APM-RS | 400W AC-DC PS/2 ATX Power Supply,meet Medical standard,with PFC;CCL |
|---|
