End of Life Notice
* Effective Date: 2017/09/04

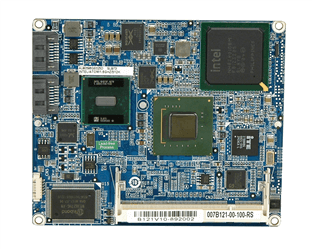

» ETX 3.0 CPU module with two on-board SATA 1.5Gb/s ports
» Support four PCI, one ISA slot for expansion
» Support dual display for VGA + LVDS
» Support four USB 2.0, two SATA, one IDE interface
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support four PCI, one ISA slot for expansion
» Support dual display for VGA + LVDS
» Support four USB 2.0, two SATA, one IDE interface
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | CPU |
|---|---|
| Chipset | Intel® 945GSE + Intel® 82801GBM/ICH7M |
| Memory Max. |
One 200-pin 533/400MHz DDR2 SO-DIMM supported (system max. 2GB) |
| I/O Interface | Ethernet |
| Digital I/O | |
| Display |
VGA/TV-Out integrated in Intel® 945GSE (to baseboard) 18-bit dual-channel LVDS signal (to baseboard) |
| Audio | |
| Expansion |
4 x PCI, 32-bit 33MHz PCI bus to baseboard ISA supported by ITE IT8888G |
| I/O Interface | |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 10% ~ 95%, non-condensing |
| Watchdog Timer | Watchdog Timer |
| Super IO | Super IO |
| I/O Interface | I/O Interface |
| 1 x LPT | |
| 2 x USB2.0 |
Ordering Information
| IEM-945GSE-N270-R11 | ETX 3.0 Module with Intel ATOM N270 1.6G,VGA/LVDS,LAN RTL8111E,USB,SATA and Audio |
|---|
