End of Life Notice
* Effective Date: 2017/12/30
» Intel® Core™ i7/i5/i3/Celeron® processors supported
» Intel® HD Graphics technology integrates high-performance graphics and media processing
» 1600/1333/1066 MHz dual-channel DDR3 memory supports up to 16 GB
» Supports 1.35V DDR3L
» 18/24-bit dual-channel LVDS, analog CRT and three DDI supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Display | |
|---|---|
| Display Output |
VGA integrated in Intel® QM77 (signal to baseboard) 3 x DDI (up to 2560x1600@60Hz) 1 x VGA up to QXGA (up to 2048x1536@75Hz) 1 x 18/24-bit dual-channel LVDS up to UXGA (up to 1920x1200@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 60°C |
| I/O Interface | |
| Ethernet | Intel® 82579LM |
| Expansion |
1 x PCIe x16 signal (to baseboard) 7 x PCIe x1 signal (to baseboard) |
| I/O Interface | |
| I/O Interface | 4 x USB 3.0 |
| 2 x RS-232 | |
| 8 x USB 2.0 | |
| Power | |
| Power consumption |
+12V@1.75A, Vcore _12V@3.33A (Intel® 1.8GHz CPU with 4 GB 1333 MHz DDR3 memory) |
| System | |
| Chipset | Intel® QM77 |
| CPU | Socket G2 for 2nd & 3rd generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor |
| Memory Max. |
Two 204-pin 1600/1333/1066 MHz dual-channel DDR3 SDRAM unbuffered DIMMs supported (system max. 16GB) Supports 1.35V DDR3L |
| Storage |
2 x SATA 3Gb/s (signal to baseboard) 2 x SATA 6Gb/s (signal to baseboard) |
Ordering Information

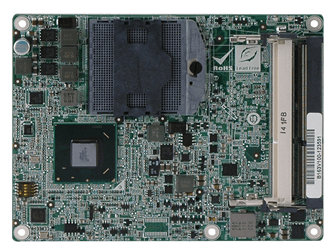

| ICE-QM770-R10 | COM Express Basic Type 6 Module,Intel 22nm Core i7/i5/i3/Pentium/Celeron Processor,VGA/LVDS,GbE,SATAIII,USB 3.0 and Audio,RoHS |
|---|
