End of Life Notice
* Effective Date: 2017/09/04
» Supports LGA 775 Intel® Core™2 Duo, Pentium® 4, Pentium® D and Celeron® D processors with 533 MHz, 800 MHz or 1066 MHz FSB
» Dual core processors combined physically
» Enhanced technology for better power consumption
» Intel® EMT64 Technology supports future 64-bit OS appliance
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Dual core processors combined physically
» Enhanced technology for better power consumption
» Intel® EMT64 Technology supports future 64-bit OS appliance
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | CPU |
|---|---|
| Chipset | Intel® 945G+ ICH7 |
| Memory Max. |
Four 240-pin 1 GB (max.) 667 MHz, 533 MHz or 400 MHz dual-channel DDR2 SDRAM DIMMs supported (system max. 4 GB) |
| CPU Socket | LGA 775 |
| I/O Interface | Ethernet |
| Digital I/O | 8-bit Digital I/O (4-bit input/4-bit output) |
| Display |
VGA integrated in Intel® 945G DVI by Silicon Image SIL1362 (WSB-9454DVI only) |
| Audio |
5.1 channel AC’97 audio kit with Realtek ALC655 codec 7.1 channel HD audio kit with Realtek ALC888 supports dual audio streams |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95%, noncondensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 6 x Internal USB 2.0 | |
| 1 x KB/MS | |
| 1 x LPT | |
| 1 x USB 2.0 | |
| 1 x VGA |
Ordering Information

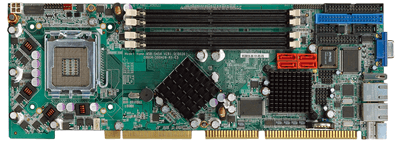

| WSB-9454-R40 | PICMG 1.0 CPU Card supports Intel LGA775 Core 2 Duo,Pentium 4/D,Celeron D with FBS 533/800/1066MHz processor include VGA,Dual PCIE GbE,USB 2.0 and SATA II,RoHS |
|---|
