End of Life Notice
* Effective Date: 2019/12/19

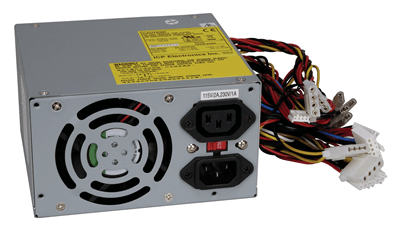

300 W PS/2 AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Efficiency | 68% |
| MTBF | 120,000 |
| Operating temperature | 0°C ~ 50°C (50°C ~ 70°C derating curve) |
| Output Connector | 1 x P8+P9, 1 x Extra +5V (P10), 4 x HDD/CDROM, 2 x FDD |
| Storage temperature | -40°C ~ 75°C |
| Watt | 300W |
| Input | |
| Voltage | 90 ~ 130 VAC, 180 ~ 260 VAC Auto Range |
| Output | |
| Voltage | +5V/33A,+12V/8A,-5V/0.5A,-12V/3A |
Ordering Information
| ACE-932A-RS | 300W AC input PS/2 type power supply;;;;CCL;RoHS |
|---|
