End of Life Notice
* Effective Date: 2020/08/13

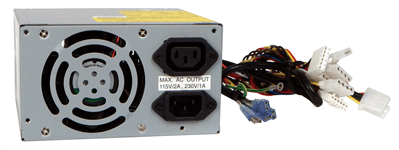

200 W PS/2 Type AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Efficiency | 68% |
| MTBF | 130,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 1 x P8+P9, 5 x HDD/CDROM, 2 x FDD |
| Storage temperature | -25°C ~ 70°C |
| Watt | 200W |
| Input | |
| Voltage | 90 ~ 265 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Output | |
| Voltage | +5V/22A,+12V/7A,-5V/0.5A,-12V/0.7A |
Ordering Information
| ACE-925A-RS | 200W AC input PS/2 type AT power supply;CCL;RoHS |
|---|
