End of Life Notice
* Effective Date: 2016/12/22

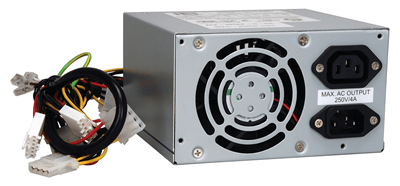

250 W PS/2 Type AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 140 x 150 x 86 |
| Efficiency | 68% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 1 x P8+P9, 4 x HDD/CDROM, 2 x FDD, 2 x SATA |
| Storage temperature | -25°C ~ 70°C |
| Watt | 250W |
| Input | |
| Voltage | 90 ~ 265 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Output | |
| Voltage | +5V/22A,+12V/11A,-5V/0.5A,-12V/0.7A |
Ordering Information
| ACE-925AP-U-RS | 250W AC input PS/2 AT type PFC power supply,CCL;RoHS |
|---|
