End of Life Notice
* Effective Date: 2021/12/16

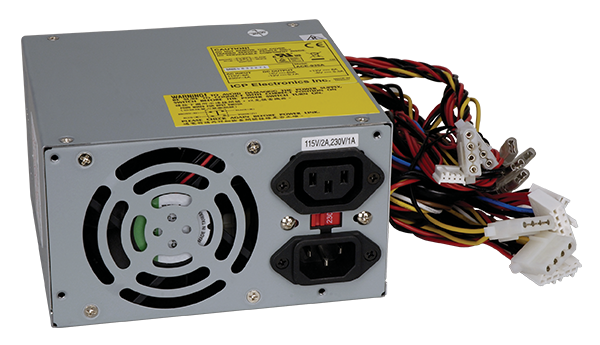

300 W PS/2 AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Efficiency | 68% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 1 x P8+P9, 1 x Extra +5V (P10), 5 x HDD/CDROM, 2 x FDD |
| Storage temperature | -40°C ~ 75°C |
| Watt | 300W |
| Input | |
| Voltage | 85 ~ 140 VAC, 170 ~ 270 VAC Auto Range |
| Output | |
| Voltage | +5V/40A,+12V/8A,-5V/0.3A,-12V/0.7A |
Ordering Information
| ACE-935AL-RS | 300W AC input PS/2 type AT Power Supply;CCL;RoHS |
|---|
