End of Life Notice
* Effective Date: 2019/10/29

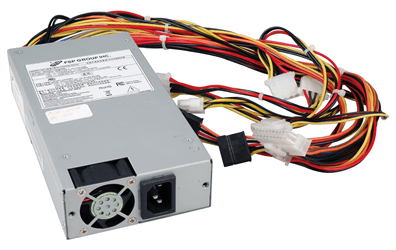

1U 250 W ATX Power Supply with ErP
Hardware Spec.
| General | |
|---|---|
| Dimensions | 100 x 190 x 40 |
| Efficiency | 85% |
| MTBF | 100,000 |
| Operating temperature | -5°C ~ 50°C |
| Output Connector |
20+4-pin ATX, 4-pin 12V, 4 x HDD, 2 x SATA,1 x FDD |
| Storage temperature | -20°C ~ 80°C |
| Watt | 250W |
| Input | |
| Voltage | 90~264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 4A (RMS)@115VAC, 2A (RMS)@230VAC |
| Inrush Current |
50A max for 115VAC 100A max for 230VAC |
| Output | |
| Voltage | +3.3V/14A,+5V/16A,+12V1/16A,+12v2/16A,-12V/0.5A,+5Vsb/3A,-5V/0.3A |
Ordering Information
| ACE-A225A-R11 | 1U 250 Watts ATX Power Supply with ERP,CCL;RoHS |
|---|
