End of Life Notice
* Effective Date: 2019/10/23

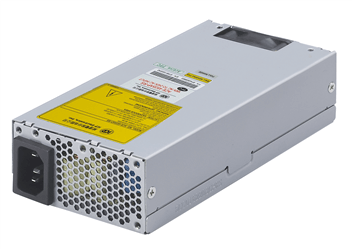

180 W 1U Type ATX Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 150 x 81.5 x 40.5 |
| Efficiency | 80% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 20-pin ATX, 4-pin 12 V, 3 x HDD, 1 x FDD |
| Storage temperature | -20°C ~ 80°C |
| Watt | 180W |
| Input | |
| Voltage | 90~264 VAC Full Range |
| Output | |
| Voltage | +3.3V/14A,+5V/16A,+12V/14A,-12V/0.5A,+5Vsb/2.0A |
Ordering Information
| ACE-A618B-RS-R10 | 1U flex ATX 180W Power Supply;90~264VAC;ERP;CCL;RoHS |
|---|
