End of Life Notice
* Effective Date: 2018/09/28

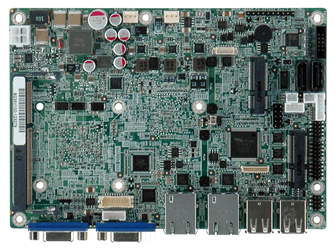

» EPIC form fator with Intel® Atom™ dual core D2550 1.86GHz/N2600 1.6GHz proccessor supporting DDR3 memory
» Dual display support by dual VGA and 18/24-bit single-channel LVDS
» 1066/800HMz DDR3 SO-DIMM supports up to 4 GB
» Easy assembly heat spreader for thermal management
» Wide power voltage range supports 9V ~ 28V power input
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| CPU Cooler | |
|---|---|
| CPU Cooler | Heat Spreader |
| Display | |
| Display |
Dual display supported VGA1: Integrated in Intel® CPU VGA2: Integrated in NXP PTN3392 1 x Single-channel 18-bit (N2600)/24-bit LVDS2 (D2550) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature |
-20°C ~ 60°C with free air, -20°C ~ 70°C with force air for D2550 processor -20°C ~ 70°C with free air, -20°C ~ 75°C with force air for N2600 processor |
| Expansion Slots | |
| Expansion Slots |
1 x PCIe Mini card slot with mSATA support 1 x half-size PCIe Mini card slot |
| I/O Interface | |
| Audio | Realtek ALC662 HD Audio Codec |
| Digital I/O | 8-bit digital I/O (4-bit input / 4-bit output) |
| Ethernet | Dual Realtek RTL8111E PCIe GbE controllers with ASF 2.0 support |
| I/O Interface |
3 x RS-232 1 x RS-422/485 6 x USB 2.0 1 x 6-pin header for KB/MS |
| I/O Interface | |
| I/O Interface | 1 x RS-422/485 |
| 3 x RS-232 | |
| 6 x USB 2.0 | |
| Power | |
| Power consumption |
12V@1.59A (Intel® dual core D2550 CPU with 1333MHz 4GB DDR3 memory) 12V@1.23A (Intel® dual core N2600 CPU with 1333MHz 4GB DDR3 memory) |
| Storage | |
| Storage |
2 x SATA 3Gb/s or 1 x SATA 3Gb/s + 1 x mSATA |
| System | |
| Chipset | Intel® NM10 |
| CPU |
Intel® Atom™ D2550 1.86GHz Intel® Atom™ N2600 1.6GHz |
| CPU Socket | On Board |
| Memory Max. |
1 x 204-pin 1066 MHz 4 GB DDR3/DDR3L (1.35V) SO-DIMM (system max. 4GB) for D2550 1 x 204-pin 800 MHz 2 GB DDR3/DDR3L (1.35V) SO-DIMM (system max. 2GB) for N2600 |
| Watchdog Timer | |
| Watchdog Timer | Software programmable and supports 1~255 sec. system reset |
Ordering Information
| NANO-CV-D25502-R10 | EPIC SBC with Intel Atom D2550 1.86GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio |
|---|---|
| NANO-CV-N26002-R10 | EPIC SBC with Intel Atom N2600 1.6GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio |
| NANO-CV-N28002-R10 | EPIC SBC with Intel Atom N2800 1.86GHz,DDR3,Dual VGA/LVDS,Dual GbE,USB 2.0,Dual PCIe Mini,SATA 3Gb/s and Audio |
Package Contents
| Package Content |
|
|---|
