End of Life Notice
* Effective Date: 2022/09/02

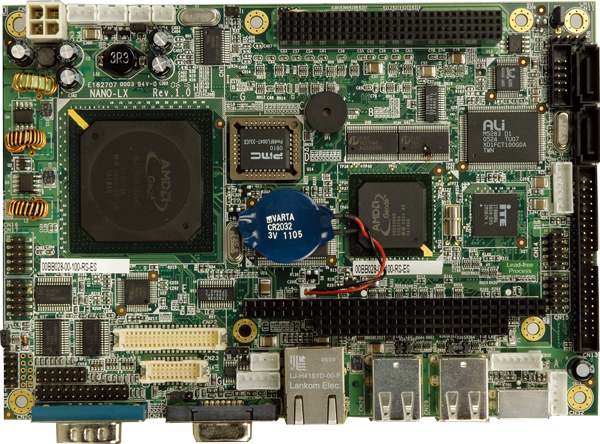

» EPIC form factor AMD LX800 processor embedded board with RoHS compliant
» DDR 400 MHz SO-DIMM SDRAM up to 1 GB
» VGA, 24-bit TTL, and 18-bit single-channel LVDS
» SATA RAID 0, 1, JBOD function support
» Complete I/O support with two SATA, IDE, PC/104-Plus and four USB 2.0
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | |
|---|---|
| CPU | AMD Geode™ LX800 (500 MHz) processor |
| Chipset | AMD Geode LX800 + AMD CS5536 |
| Memory | One 200-pin 400/333 MHz DDR SDRAM SO-DIMM |
| Memory Max. | 1GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 115 X 165 |
| Net Weight | 350g |
| Storage | |
| Storage | Description: 1 X IDE |
| 2 x SATA VIA VT6421A RAID 0,1 function support | |
| 1 x CF Type II Card | |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1440@60Hz |
| 1 x TTL :24-bit single-channel (up to 1600x1200@60Hz) | |
| 1 x LVDS :18-bit singel-channel (up to 1280x1024@60Hz) | |
| Ethernet | 1 x LAN :10/100Mbps Realtek RTL8100C |
| Audio | Description: Realtek ALC203 with AC’97 codec |
| I/O Interface | 1 x External RS-232 |
| 5 x Internal RS-232 | |
| 1 x Internal RS-232/422/485 | |
| 4 x External USB 2.0 | |
| 4 x Internal USB 2.0 | |
| 1 x PS/2 | |
| 1 x LPT | |
| Power | |
| Power Consumption |
12V@0.92A (AMD LX800 with 400 MHz 256MB DDR RAM) |
| Power Supply |
12V only DC input 1 x Internal power connector (2x2 pin) support AT/ATX mode |
| Environment | |
| Storage Temperature | 0°C ~ 60°C |
| Operating Shock | -10°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| NANO-LX-800-R12 | EPIC SBC,AMD LX800 500MHz Processor,VGA/LVDS/TTL,LAN,SATA and Audio,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
