End of Life Notice
* Effective Date: 2019/08/29

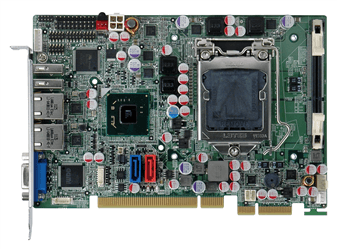

» Half-size PCIe CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» One 1333/1066 MHz DDR3/DDR3L (1.35V) SDRAM SO-DIMM supports up to 8 GB
» On-board embedded controller supports infrared and PECI 2.0 technologies
» One SATA 6Gb/s and dual Realtek PCIe GbE
» TPM V1.2 hardware security provided by the TPM module
» IEI One Key Recovery solution allows you to create raipd OS backup and recovery
Hardware Spec.
| Environment | |
|---|---|
| Humidity | 10% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | PCIe signal and PCI signal via golden finger |
| I/O Interface | |
| Audio | Supports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit |
| Digital I/O | 8-bit digital I/O (4-bit input, 4-bit output) |
| Display | 1 x VGA (up to 2048 x 1536 @75Hz) |
| Ethernet |
LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support LAN2: Realtek RTL8111E PCIe GbE controller |
| I/O Interface | |
| I/O Interface | 1 x I²C |
| 2 x Internal RS-232 | |
| 2 x Internal USB 2.0 | |
| 1 x KB/MS | |
| 1 x SMBus | |
| 2 x USB 2.0 | |
| Power | |
| Power consumption |
5V@3.17A, 12V@0.46A, Vcore_12V@7.26A, 5VSB@0.18A (3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory) |
| Storage | |
| Storage |
1 x SATA 3Gb/s 1 x SATA 6Gb/s |
| System | |
| Chipset | Intel® B65 |
| CPU | Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor |
| CPU Socket | LGA1155 |
| Memory Max. |
One 204-pin 1333/1066MHz DDR3 & DDR3L (1.35V) SO-DIMM supported (system max. 8GB) |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
Ordering Information
| PICOe-B650-R10 | Half-size PCIe CPU card supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel B65,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 6Gb/s,HD Audio and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
