End of Life Notice
* Effective Date: 2019/10/04

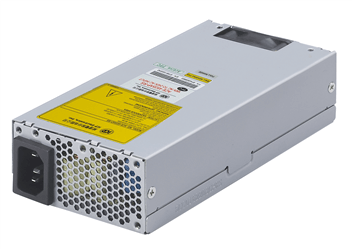

150 W 1U Type ATX Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 150 x 81.5 x 40.5 |
| Efficiency | 85% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 20+4-pin ATX, 4-pin 12V CPU, 1 x FDD, 2 x HDD, 2 x SATA |
| Storage temperature | -20°C ~ 80°C |
| Watt | 150W |
| Input | |
| Voltage | 90~264 VAC Full Range |
| Output | |
| Voltage | +3.3V/10A+5V/14A,+12V/10A,-12V/0.3A,+5Vsb/2.5A |
Ordering Information
| ACE-A615B-RS-R10 | 1U flex ATX 150W Power Supply;90~264VAC;ERP;CCL;RoHS |
|---|
