End of Life Notice
* Effective Date: 2023/07/04

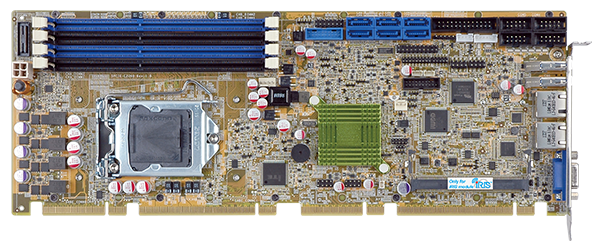

» PICMG 1.3 full-size server grade solution
» LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported
» Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB
» Supports dual independent display by VGA and iDP interfaces
» Supports PCIe Mini devices and mSATA via PCIe Mini socket
» Intel® PCIe GbE with Intel® AMT 9.0 support
» Supports RAID function via SATA 6Gb/s
» TPM V1.2 hardware security function supported by TPM module
» Stiffener bars
» IEI jumper-less function
» Supports IPMI 2.0 via iRIS-2400 module
Hardware Spec.
| System | |
|---|---|
| CPU | LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® or Celeron® processor supported |
| Chipset | Intel® C226 |
| Memory | Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM ECC and nonECC unbuffered DIMMs |
| Memory Max. | 32GB |
| Cooling method / System Fan |
1 x CPU smart fan (1x4 pin) 1 x System smart fan (1x3 pin) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 338 X 126 |
| Net Weight | 420 |
| Storage | |
| Storage | 6 x SATA :6Gb/s (RAID 0/1/5/10 supported) |
| 1 x mSATA | |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1200@60Hz |
| 1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet |
2 x LAN LAN1: Intel® I217LM with Intel® AMT 9.0 support LAN2: Intel® I210-AT PCIe controller with NCSI support |
| Audio | Description: Supports 7.1-channel HD Audio by IEI AC-KIT-892HD-R10 kit |
| I/O Interface | 4 x Internal RS-232 :2x5 pin, p=2.54 |
| 1 x Internal RS-422/485 :1x4 pin, P=2.0 | |
| 8 x Internal USB 2.0 :4 x 2x5pin, p=2.54,4 x Golden finger | |
| 1 x PS/2 :1x6 pin | |
| 1 x LPT :2x13 pin | |
| Expansion | 1 x PCIe mini Card Slot :colay mSATA |
| Other Features | |
| iRIS | 1 X iRIS-2400 slot |
| TPM | 2x10 pin |
| Power | |
| Power Consumption | 5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (Intel® E3-1240 v3 3.4GHz CPU with 16 GB (four 4 GB) 1333 MHz DDR3 memory) |
| Power Supply | 5V/12V, Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| SPCIE-C2260-i2-R10 | Full-size PICMG 1.3 CPU Card supports LGA1150 Intel Xeon E3/Core™ i3/Pentium and Celeron per Intel C226,DDR3,VGA,IDP,Dual Intel PCIe GbE,SATA III,mSATA, mini PCIe,RS-232,HD Audio, iRIS-2400 and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
