End of Life Notice
* Effective Date: 2017/09/04
» Intel® Atom™ processor N270 1.6 GHz CPU for ultra low voltage fanless support
» Support dual display for VGA+LVDS
» System memory supports up to 2 GB 533 MHz DDR2
» Support six COM, six USB 2.0, two SATA and CF Type II socket
» Thermal design for easy assembly
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Support dual display for VGA+LVDS
» System memory supports up to 2 GB 533 MHz DDR2
» Support six COM, six USB 2.0, two SATA and CF Type II socket
» Thermal design for easy assembly
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Display | Display |
|---|---|
| System | CPU |
| Chipset | Intel® 945GSE/IntelR 82801 GBM/ICH7M |
| Memory Max. |
One 200-pin 400/533 MHz DDR2 SDRAM SODIMM slot supports up to 2 GB |
| CPU Socket | |
| I/O Interface | Ethernet |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Audio | Realtek ALC662 with HD Audio codec |
| I/O Interface | |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95% non-condensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| FSB | FSB |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 4 x Internal USB 2.0 | |
| 1 x RS-232 | |
| 2 x USB 2.0 |
Ordering Information

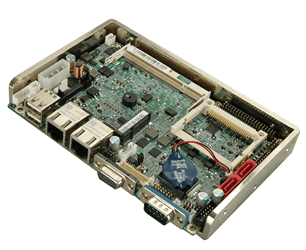

| WAFER-945GSE-N270-R20 | 3.5" SBC with Intel Atom N270 processor,VGA/LVDS/Dual PCIe GbE,CF type II,SATA,RoHS |
|---|---|
| WAFER-945GSE-N270W-R20 | 3.5" SBC with Intel Atom N270 processor,VGA/LVDS/Dual PCIe GbE,CF type II,-20~70℃,RoHS |
