End of Life Notice
* Effective Date: 2019/10/23

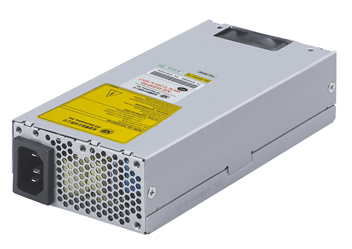

1U Flex ATX 300 W Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 150 x 81.5 x 40.5 |
| Efficiency | 82% |
| MTBF | 100,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | 20+4-pin ATX, 4-pin 12V CPU, 1x FDD, 2 x HDD, 2 xSATA |
| Storage temperature | -20°C ~ 80°C |
| Watt | 300W |
| Input | |
| Voltage | 90~264VAC Full Range |
| Output | |
| Voltage | +3.3V/16A,+5V/18A,+12V/15A,-12V/0.5A,-5Vsb/3A |
Ordering Information
| ACE-A630B-RS-R10 | 1U flex ATX 300W Power Supply;90~264VAC;ERP;CCL;RoHS |
|---|
