End of Life Notice
* Effective Date: 2018/07/18

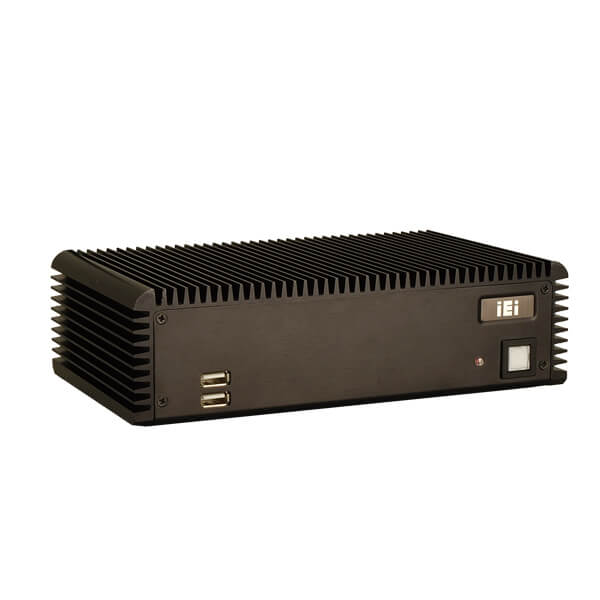

» Fanless system with Intel® Atom™ D2550 dual-core 1.86 GHz CPU
» Supports 4 COM ports (3 x RS-232, 1 x RS-422/485)
» 2 PCIe Mini slots (1 x Full-size, 1 x Half-size)
» 12V DC and 9 V~36 V DC model available
» 2T2R 802.11b/g/n wireless model available
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
CPU:Intel® Atom™ dual-core D2550 1.86GHz Chipset:Intel® NM10 System Memory:2GB DDR3 204-pin SO-DIMM memory pre-installed |
| I/O Interface | |

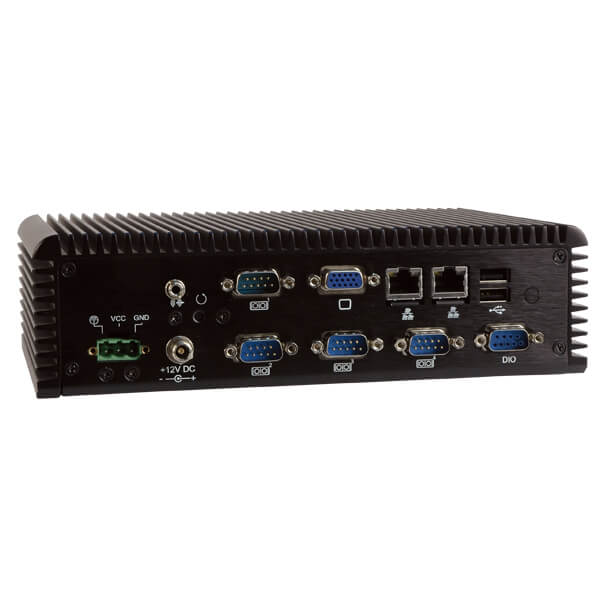

| I/O Ports |
4 x USB 2.0 Ethernet:2 x Realtek RTL8111E PCIe GbE controller COM Port: 3 x RS-232 1 x RS-422/485 Digital I/O:8-bit digital I/O Display:1 x VGA Resolutio: VGA: Up to 1920 x 1200@60Hz Audio:1 x Line-out Wireless:1 x 802.11b/g/n (optional) |
| Expansion Slots | |
| Expansion Slots |
1 x Full-size (supports mSATA) 1 x Half-size |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5' SATA HDD bay |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 229 x 64 x 132 |
| Weight | |
| Weight | 2.1 kg / 3.9 kg |
| Environment | |
| Operating Temperature | -10°C~50°C with air flow (SSD) |
| Humidity | 5% ~ 95%, non-condensing |
Ordering Information
| ECW-281BWD-R10/D2550/2GB | Fanless embedded system with WAFER-CV-D25501,with dual core Intel ATOM D2550 1.86G, 4 serial ports,with 2GB DDR3 pre-installed SO-DIMM memory,9~36VDC in, black, RoHS |
|---|---|
| ECW-281B-R11/D2550/2GB | Fanless embedded system with WAFER-CV-D25501,with dual core Intel ATOM D2550 1.86G, 4 serial ports,with 2GB DDR3 pre-installed SO-DIMM memory,12VDC in,60W power adapter , black, RoHS |
Package Contents
| Package Content |
|
|---|
