End of Life Notice
* Effective Date: 2019/03/18

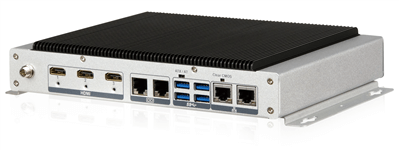

» Fanless system with Intel® Celeron® N3160 processor
» Three HDMI™ ports
» Two full-size PCIe Mini slots for expansion
» Four USB 3.0 ports
» Two GbE LAN ports
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
CPU:Intel® Celeron® N3160 (up to 2.24GHz, quad-core, 2MB cache, TDP=6W) Chipset:SoC System Memory: 1 x 1600/1333 MHz DDR3L SO-DIMM,4 GB pre-installed (support up to 8GB) |
| I/O Interface | |
| I/O Ports |
4 x USB 3.0 Ethernet:2 X RJ-45 PCIe GbE by RTL8111E controller RS-232:2 x RJ-45 RS-232 Button:1 x Power button Display:3 x HDMI™ Resolution: HDMI™ 1: up to 2560x1600 @ 60Hz HDMI™ 2&3: up to 3840x2160 @ 30Hz Wireless:1 x 802.11b/g/n (optional) |
| Expansion Slots | |
| Expansion Slots | PCIe Mini:2 x Full-size PCIe Mini slot (one co-lay mSATA) |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5' SATA 6Gb/s HDD/SSD Bay |
| Color | |
| Color | Silver |
| Dimensions | |
| Dimensions | 241 x 160 x 39 |
| Weight | |
| Weight | 1.8 kg/ 3kg |
| Environment | |
| Operating Temperature | -20°C ~60°C with air flow (SSD) |
| Humidity | 10% ~ 95%, non-condensing |
Ordering Information
| IDS-300-BW-N3/4G-R10 | Fanless embedded system with Intel® Celeron N3150 1.6GHz, (up to 2.08 GHz, Quad Core, TDP 6W), 4GB DDR3L pre-installed memory, 12V DC, triple HDMI™ display, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
