End of Life Notice
* Effective Date: 2019/01/31

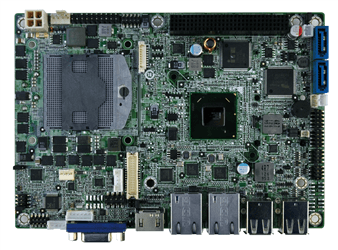

» EPIC SBC with Socket G2 for Intel® 2nd generation Core™ i7/i5/i3 and Celeron® processor
» VGA/24-bit dual-channel LVDS/HDMI™ for dual display support
» 1066/1333HMz DDR3 SDRAM supported (system max. 8 GB)
» Supports three COM, eight USB 2.0, two SATA 6Gb/s, PCI-104 and audio
» TPM V1.2 hardware security function supported by TPM module
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Display | |
|---|---|
| Display |
Dual display supported VGA (up to 2048x1536@75Hz) HDMI™ (up to 1920x1200@60Hz) 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz) |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -10°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots |
1 x Full-size PCIe Mini card slot 1 x PCI-104 slot (PCI signal) |
| Form factor | |
| Form factor | EPIC |
| I/O Interface | |
| Audio | Realtek ALC662 HD Audio codec |
| Digital I/O | 8-bit digital I/O (4-bit input / 4-bit output) |
| Ethernet |
Dual LAN: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support |
| I/O Interface | |
| I/O Interface | 4 x USB 2.0 |
| 4 x Internal USB 2.0 | |
| 2 x Internal RS-232 | |
| 1 x Internal RS-422/485 | |
| Power | |
| Power consumption | 12V@4.85A (2.6GHz Intel® Core i5-2540M with 1333 MHz 4 GB DDR3 memory) |
| Storage | |
| Storage | 2 x SATA 6Gb/s with 5V SATA power connector |
| System | |
| Chipset | Intel® HM65 |
| CPU Socket | Socket G2 for 2nd generation Intel® Core™ i7/i5/i3 and Celeron® mobile processor |
| Memory Max. | One 204-pin 1066/1333 MHz DDR3 SDRAM SO-DIMM slot supports up to 8 GB |
| Watchdog Timer | |
| Watchdog Timer | Software programmable supports 1~255 sec. system reset |
Ordering Information
| NANO-HM650-R11 | EPIC SBC supports Socket G2 supports Intel® mobile Core™ i7/i5/i3 CPU, VGA/HDMI™, Dual PCIe GbE, USB2.0, Mini PCIe, SATAIII , PCI-104 and Audio,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
