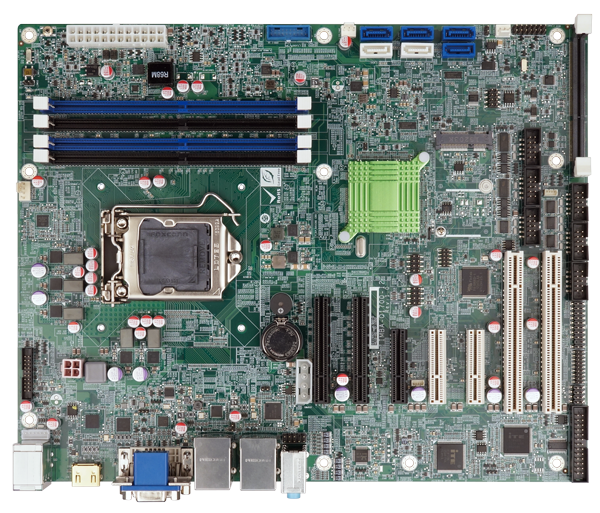

IMBA-C2360
ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series,
» LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
» Dual-channel DDR4 2133 MHz
» Intel® PCIe GbE with Intel® AMT11.0 support
» Support independent triple display with HDMI™, DVI and VGA
» Support PCI Express generation 3.0 at 8GT/s I/O bandwidth
» USB 3.0 and SATA 6Gb/s
» Support IPMI 2.0 via iRIS-2400
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | |
|---|---|
| CPU | LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor |
| Chipset | Intel® C236 |
| Memory | Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs |
| Memory Max. | 64GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 244 X 305 |
| Net Weight | 700g |
| Storage | |
| Storage | 6 x SATA :6Gb/s |
| I/O Interface | |
| Display Output | 1 x VGA :up to 1920x1200@60Hz |
| 1 x DVI-D :up to 1920x1200@60Hz | |
| 1 x HDMI™ :2.0 (up to 4096x2160@60Hz) | |
| 1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz) | |
| Ethernet |
2 x LAN :LAN1: Intel® I219LM with Intel® AMT 11.0 support LAN2: Intel® I210AT PCIe controller with NCSI support |
| Audio | Description: Realtek ALC662 HD codec supports 5.1-channel |
| 1 x Line in :on rear IO | |
| 1 x Line out :on rear IO | |
| 1 x Mic :on rear IO | |
| 1 x Front Audio :2x5 pin | |
| I/O Interface | 4 x Internal RS-232 :2x5 pin, p=2.54 |
| 2 x Internal RS-232/422/485 :2x5 pin, p=2.54 | |
| 2 x External USB 2.0 | |
| 4 x External USB 3.2 Gen1x1 | |
| 4 x Internal USB 2.0 :2x4 pin, p=2.0 | |
| 2 x Internal USB 3.2 Gen1x1 :2x10 pin, p=2.0 | |
| 1 x PS/2 :1x6 pin | |
| 1 x DIO :8-bit digital I/O (2x5 pin) | |
| 1 x LPT :2x13 pin, p=2.54 | |
| Expansion | 2 x PCIe x8 |
| 3 x PCIe x4 | |
| 2 x PCI Slot | |
| 1 x PCIe mini Card Slot :Full-size slot(support mSATA) | |
| Other Features | |
| TPM | 2x10 pin |
| iRIS | 1 X iRIS-2400 slot |
| Power | |
| Power Consumption |
3.3V@1.51A, 5V@3.31A, 12V@9.02A, 5VSB@3.7A (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 32 GB (four 8GB) 2133 MHz DDR4 memory) |
| Power Supply | Support AT/ATX mode |
| Environment | |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| IMBA-C2360-i2-R10 | ATX Motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5,Core™ i3, Pentium®, Celeron®per Intel®C236, DDR4, triple Independent displays VGA/DVI-D/ HDMI™ 2.0,Dual Intel®GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI2.0 and RoHS |
|---|
Package Contents
| Package Content |
|
|---|
