End of Life Notice
* Effective Date: 2020/01/10

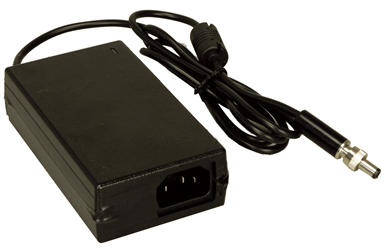

60 W AC/DC Adapter
Hardware Spec.
| General | |
|---|---|
| Efficiency | 88.9% |
| Storage temperature | -20ºC ~ 65ºC |
| Watt | 60 W |
| Environment | |
| Operating Temperature | 0ºC ~ 40ºC |
| Input | |
| Voltage | 90-264 VAC |
| Frequency | 47-63 Hz |
| Output | |
| Voltage | 12V |
Ordering Information
| 63040-010060-120-RS | Adapter Power;FSP;FSP060-DIBAN2;9NA0605308;;Vin:90~264VAC;60W;Dim:62.0*110*31.5mm;Plug=7.5mm;Cable=1200mm;Erp(NO LOAD 0.21W);Vout:12VDC;Φ2.5/Φ5.5/lock;CCL;RoHS |
|---|---|
| 63040-010060-130-RS | Adapter Power;FSP;FSP060-DIBAN2;9NA0605309;;Vin:90~264VAC;60W;Dim:62.0*110*31.5mm;Plug=9.5mm;Cable=1500mm;Erp(NO LOAD 0.21W);Vout:12VDC;Φ2.5/Φ5.5;CCL;RoHS |
