End of Life Notice
* Effective Date: 2018/05/18
» 一个通道 HDMI™ 输入 具有 H.264 硬件压缩
» 高质量视频录制高达 1080p30
» 提供 DirectShow 筛选器
» 低功耗
» 支持 Windows/Linux 操作系统
Hardware Spec.

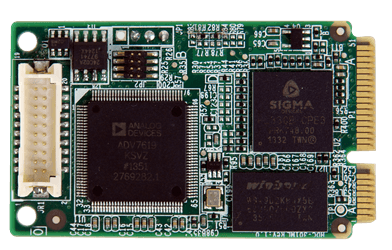

| Appearance | |
|---|---|
| Dimension | 51 mm x 30 mm |
| Audio Processing | |
| Audio Compression | MPEG4-AAC |
| Audio Sampling Frequencies | 44.1k, 48k Hz |
| Recording Data rate | 128kbps |
| Capture Interface | |
| Audio Input | 1 x Audio Input Channel |
| 1 x Audio Input-HDMI™ (stereo) | |
| Interface Type | 1 x PCIe mini |
| Video Input | 1 x Video Input Channel |
| 1 x Video Input-HDMI™ | |
| 环境 | |
| 操作温度 | 0°C ~ 60°C (32° ~ 140°F), non-condensing |
| Functionality | |
| Multiple Card Support | 4 cards, 4 channels |
| Scaling | Video scaling down compression |
| Others | |
| Power Consumption | 3W |
| Software Support | |
| SDK | 1 x Linux |
| 1 x Windows | |
| OS Compatible | 1 x Linux Ubuntu (16.04 (64-bit) (Kernel version: 4.4.0-21-generic)) |
| 1 x Microsoft Windows 7 32-bit | |
| 1 x Microsoft Windows 7 64-bit | |
| System Requirement | |
| CPU | Intel® Core™ 2 Duo 2.4GHz or above |
| Memory | 2GB or more |
| Video Processing | |
| Recording Data rate | 1~30Mbps |
| Recording Formats |
1920 x 1080 24p/25p/30p/50p/60p 1920 x 1080 60i/59.94i/50i 1280 x 1024 30p 1280 x 800 60p 1280 x 768 60p 1280 x 720 50p/60p 1024 x 768 60p 800 x 600 60p 720 x 576 50p 720 x 480 60p 640 x 480 60p |
| Video Compression | 1 x Hardware Encoder (H.264/AVC High Profile Level 4.1) |
| Video Input Resolution |
1920 x 1080 24p/25p/30p/50p/60p 1920 x 1080 60i/59.94i/50i 1280 x 1024 30p 1280 x 800 60p 1280 x 768 60p 1280 x 720 50p/60p 1024 x 768 60p 800 x 600 60p 720 x 576 50p 720 x 480 60p 640 x 480 60p |
Ordering Information
| HDC-301MS-R10 | 迷你 PCIe 视频/音频采集卡 具有 一个 HDMI™ 输入,1920x1080@30p, 和 H.264 硬件编码器 |
|---|
Package Contents
| Package Content |
|
|---|
