End of Life Notice
* Effective Date: 2018/05/18
» 2-channel HDMI™ input with H.264 hardware compression and 2-channel HDMI™ output
» High quality video encoding or decoding up to 1080p60
» HDMI™ output port supports video no delay pass through up to 1080p60, so you can check video while recording
» HDMI™ output port supports playback video file captured by HDC-30X series cards
» Low Power Consumption
» SDK available for customer to create customized applications
» Windows/Linux OS supported
Hardware Spec.

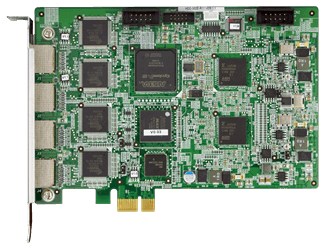

| Appearance | |
|---|---|
| Dimension | 155 mm x 98.6 mm |
| Audio Processing | |
| Audio Compression | MPEG-1 Audio Layer 2 |
| Recording Data rate | 256k |
| Capture Interface | |
| Audio Input | 2 x Audio Input Channel |
| 2 x Audio Input-HDMI™ | |
| Audio Output | 2 x Audio Output Channel |
| 2 x Audio Output-HDMI™(support decode file or HDMI™ bypass output) | |
| Interface Type | 1 x PCIe x 1 |
| No Delay Passthrough | 2 x Audio Output Channel |
| 2 x Video Output Channel | |
| 2 x Audio Output-HDMI™ | |
| 2 x Video Output-HDMI™ | |
| Video Input | 2 x Video Input Channel |
| 2 x Video Input-HDMI™ | |
| Video Output | 2 x Video Output Channel |
| 2 x Video Output-HDMI™(support decode file or HDMI™ bypass output) | |
| Environment | |
| Operating Temperature | 0°C ~ 65°C, non-condensing |
| Functionality | |
| Multiple Card Support | 4 cards, 8 channels |
| Others | |
| Power Consumption | 9.53W (12V@0.46A, 3.3V@1.21A) |
| Software Support | |
| SDK | 1 x Linux |
| 1 x Windows | |
| OS Support | 1 x Microsoft Windows 7 32-bit |
| 1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic)) | |
| 1 x Microsoft Windows 7 64-bit | |
| System Requirement | |
| CPU |
x86 PC compatible computer, Intel® Pentium® 4 2.0GHz or above for video record |
| Memory | 1GB or more |
| Graphic Card |
Recommends using a DXVA or CUDA capable graphics card for real-time video playback |
| Video Processing | |
| Recording Data rate | 2-30 Mbps |
| Recording Formats |
1920 x 1080 60p / 59.94p / 50p 1920 x 1080 60i / 59.94i / 50i 1280 x 720 60p / 59.94p / 50p 720 x 480 60i / 59.94i 720 x 576 50i |
| Video Compression | 1 x Hardware Encoder(H.264/AVC High Profile Level 4.2) |
| Video Input Resolution |
1920 x 1080 60p / 59.94p / 50p 1920 x 1080 60i / 59.94i / 50i 1280 x 720 60p / 59.94p / 50p 720 x 480 60i / 59.94i 720 x 576 50i |
Ordering Information
| HDC-302E-R11 | PCI Express video/audio capture card with two HDMI™ input channels and two HDMI™ output channels,1920x1080@60p,and Hardware H.264 codec (H56) |
|---|
Package Contents
| Package Content |
|
|---|
