End of Life Notice
* Effective Date: 2019/11/06
» Compact 1/2” On-Semi CMOS sensor with global shutter
» Large pixel: 4.8 µm / Frame rate: 140fps / Resolution: 1280x1024
» High bandwidth, provides power and data over a single cable.
» Lower cost implementation, Plug-and-play and easier to set up.
» Adopted as “USB3 Vision” standard and supported vision software such as Halcon, Merlic, MIL, NI LabVIEW.
Hardware Spec.

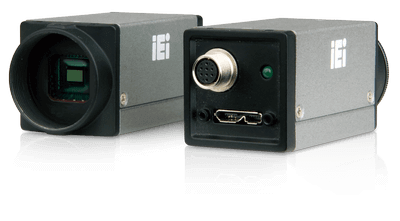

| Appearance | |
|---|---|
| Dimension | 29 mm x 29 mm x 57 mm |
| Net Weight | 85g |
| Capture Interface | |
| Interface Type | 1 x USB3.0 |
| Certifications | |
| Safety & EMC | CE/EMC, FCC |
| LED Safety | CE/LVD |
| Environment | |
| Operating Temperature | 0° ~ 50°C |
| Storage Humidity | 30% ~ 95% |
| Storage Temperature | -30° ~ 60°C |
| Operating Humidity | 20% ~ 80% |
| I/O Interface | |
| I/O Interface | 1 x Trigger connection(IO connecting cable with an 8-pin male connector) |
| Others | |
| Power Requirements | 5V via USB 3.0 or 6-18V via Opto-isolated input |
| Parameters | |
| Opto-isolated I/O Ports | 1 input, 1 output |
| ADC | 8-bit/10-bit |
| Pixel Size | 4.8µm |
| Readout Method | Global shutter |
| Resolution | 1280 x 1024 |
| Sensor Name | On-Semi PYTHON 1300 |
| Sensor Type | CMOS |
| Machine Vision Standard | USB3 Vision v1.0 |
| Non-isolated I/O Ports | 1 RS-232 |
| Sensor Size (inch) | 1/2＂ |
| Auxiliary Output | 5V, 100 mA max |
| Chroma | Mono |
| Compliance | CE, FCC |
| Frame Rate | 150FPS (Max) |
| Interface | USB 3.0 |
| Lens Mount | CS-mount |
| Megapixels | 1.3 MP |
| Software Support | |
| SDK | 1 x Windows |
| OS Support | 1 x Microsoft Windows 10 32-bit |
| 1 x Microsoft Windows 10 64-bit | |
| 1 x Microsoft Windows 7 32-bit | |
| 1 x Microsoft Windows 7 64-bit | |
| 1 x Microsoft Windows 8.1 32-bit | |
| 1 x Microsoft Windows 8.1 64-bit | |
| Sensor Specifications | |
| Acquisition | Continuous, Single Frame, Multi Frame |
Ordering Information
| HSC-13M3-O-R10 | USB 3.0 Monochrome Camera & Opto-isolated I/O, 1/2” On-semi CMOS, Global Shutter, 1280x1024 pixel, without Lens, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
