End of Life Notice
* Effective Date: 2019/04/15

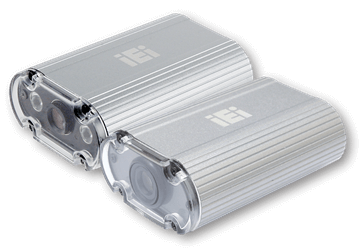

» Support remote monitoring and control via Android phones and tablets
» Connection I/O interface: USB, Ethernet TCP/IP
» Support hardware and software trigger modes, both with one shot, series shot, batch and presentation options
» Automatic or manual CMOS sensor configuration: exposure, gain and brightness options supported
» LED: External / Internal
» Image: Capture
» Image Format: BMP
» Region of Interest setting
» Firmware upgradable via USB / Ethernet
» Other Configurations: Decode Timeout / Decode Interval
Hardware Spec.
| Appearance | |
|---|---|
| Dimension | 89.8 mm x 62 mm x 32 mm |
| Net Weight | 290 g (without mounting bracket) |
| Front cover | Transparent plastic |
| Housing | Die-casting aluminum |
| Housing color | Silver |
| 认证 | |
| Shock Resistance | EN 60068-2-27 (2009-05) |
| Vibration | MIL-STD-810F 514.5C-1 and IEC-60068-2-06 |
| 环境 | |
| 操作温度 | 0°C ~ 50°C |
| 存储温度 | -10°C ~ 60°C |
| Ambient light safety | 2,000 lx, on code |
| Permissible relative humidity | 90% (non-condensing) |
| RoHS compliant | yes |
| I/O 接口 | |
| 网络 | 1 x LAN (Ethernet data transmission rate: 10/100 M-bit/s) |
| I/O接口 | 1 x Micro USB 2.0 (USB 2.0 data transmission rate: 480 M-bit/s) |
| 1 x Trigger connection (1 x 6-pin connector for trigger connection) | |
| Control button | 1 x Trigger & Tuning (Trigger and tuning control button) |
| Indicator | 1 x Acoustic Indicator (Beeper) |
| 1 x Power Indicator | |
| Others | |
| Power Consumption | Max 9.9 W |
| Power Supply | 1 x Operating voltage (12V/3.3A ,1*DC in jack(Ø2.5/Ø5.5)) |
| Power Comsumption | 1 x Power on (7.7 W) |
| Software Support | |
| SDK | 1 x Windows |
| 1 x Software (:AP (without source code): Provide software installer to use directly) | |
| OS Compatible | 1 x Microsoft Windows 10 32-bit (via network connection) |
| 1 x Microsoft Windows 7 32-bit | |
| 1 x Microsoft Windows 7 64-bit | |
| 1 x Microsoft Windows 8.1 32-bit | |
| 1 x Microsoft Windows 8.1 64-bit | |
| 1 x Microsoft Windows 10 64-bit (via network connection) | |
| Light Source | |
| Illumination |
2 x Red LEDs Visible red light (λ= 650 nm ~ 660 nm) |
| Lens Specifications | |
| Code resolution |
ITDB-100L: ≥0.33 mm ITDB-100HD: ≥0.2 mm |
| Focus | Fixed |
| Reading distance |
ITDB-100L: 50 mm ~ 330 mm ITDB-100HD: 20 mm ~ 52 mm |
| Sensor Specifications | |
| Resolution | 752 x 480 |
| Acquisition | Max. rate 60fps |
| CMOS | 1/3 inch CMOS with global shutter |
| Symbologies | |
| 1D | 1 x Codabar |
| 1 x Code 128 | |
| 1 x Code 39 | |
| 1 x Code 93 | |
| 1 x Interleaved 2 of 5 | |
| 1 x MSI | |
| 1 x UPC/EAN ((ISBN, UPCA, UPCE, UPCE1, EAN13, EAN8) with supplementals) | |
| 1 x EAN128 | |
| 2D | 1 x Data Matrix |
| 1 x Micro PDF417 | |
| 1 x Micro QR Code | |
| 1 x PDF417 | |
| 1 x QR Code | |
| Trigger Connector | |
| Absolute voltage limits | 4.5VDC ~ 24VDC |
| Input of Interrupt Trigger Current | 1.4mA@5VDC,4mA@12VDC,6.2mA@18VDC |
| Output of LED Flash Trigger Current | 8mA |
| Output of LED Flash Trigger Voltage | 3.3VDC |
| Recommended operating voltage | 5VDC ~ 18VDC |
Ordering Information
| ITDB-100HD-R10 | Image-based code reader system with 1D, 2D decoding code types;752x480;2LEDs,Reading distance(at code resolution): 20mm ~52mm,12VDC Input,RoHS,I/O with 1xUSB2.0, 1xDC jack(Φ2.5*Φ6.3),1x ethernet 1x6-pin trigger port,1x trig button |
|---|---|
| ITDB-100L-R10 | Image-based code reader with 1D,2D decoding code types;752x480;2xLED,Reading distance(at code resolution):50mm~330mm,12V DC Input, RoHS,I/O interface with 1xUSB 2.0,1xDC jack(Φ2.5*Φ6.3),1x ethernet 1x6-pin trigger port,1x trigger button. |
Package Contents
| Package Content |
|
|---|
