End of Life Notice
* Effective Date: 2018/07/18
» Designs for Mini-ITX SBC with single voltage input
» Flexible storage with CF or 2.5” HDD (optional)
» One PCI or PCIe expansion slot (optional)
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
Refer to KINO Series SBC Size: Mini-ITX (170mm x 170mm) |
| Expansion Slots | |
| Expansion Slots |
1 x Low profile PCI/PCIe (support by optional modules) Max. dimensions: 147 mm (L) x 10.5 mm (D) |
| System | |
| Cooling method / System Fan | 2, 40 x 40 x 10 |
| Drive Bays |
2 x 2.5” HDD bays (default) Varies by optional modules |
| Indicator&Buttons | |
| Buttons | Power switch,Reset |
| Indicators | Power LED,Error LED |
| Physical Characteristics | |
| Construction | Desktop, wall mount, VESA mount |
| Color | |
| Color | Black |
| Dimensions | |
| Dimensions | 260 x 180 x 55 |
| Weight | |
| Weight | 1.1 kg/2 kg |
| Environment | |
| Operating Temperature | -10°C ~ 50°C with air flow* |
Ordering Information

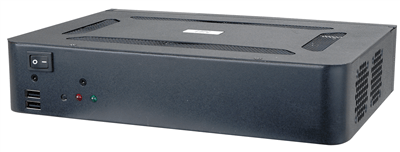

| EBC-3200-R10 | Mini-ITX embedded chassis,compatible two 2.5" hdd,w/o power adapter,Black,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
