End of Life Notice
* Effective Date: 2021/09/01

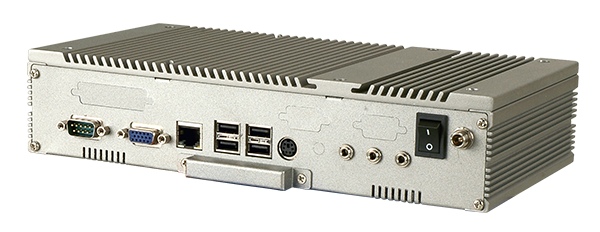

» Fanless system with AMD LX-800
» Complete I/O interfaces, including LAN, COM, four USB
» Single 12V DC power input, AT mode only
» DDR support up to 1GB
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor |
Refer to SBC SBC Size (mm): EPIC (165 x 115) |
| I/O Interface | |
| I/O Ports |
1 x PS/2 4 x USB2.0 1+2 RS-232 1 X LPT (optional) 1 x Realtek 8100C 3 x Audio jack (optional) |
| Expansion Slots | |
| Expansion Slots | 1 x PCI-104 |
| System | |
| Cooling method / System Fan | 40 x 40 x 10 (optional) |
| Drive Bays |
1 x 2.5” SATA HDD drive bay 1 x CF Card/CFast |
| Physical Characteristics | |
| Construction | Aluminum alloy with heavy duty metal |
| Color | |
| Color | Cool gray |
| Dimensions | |
| Dimensions | 262 x 134 x 56 |
| Weight | |
| Weight | 1 kg/3 kg |
| Environment | |
| Operating Temperature | 0°C ~ 50°C |
Ordering Information
| EBC-2100-R41 | Embedded chassis for NANO-8522/LX,compatible with 2.5" SATA hard drive,60W power adapter with ERP and PSE certificates,sliver,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
