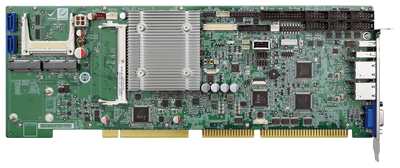

WSB-BT

Full-size PICMG 1.0 CPU Card supports Intel® Celeron™ on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS

End of Life

End of Life Notice

* Effective Date: 2020/12/31

» Full-size PICMG 1.0 with Intel® Celeron™ J1900 & N2807 on-board SoC
» Dual-channel 1066/1333MHz DDR3L SO-DIMM supports up to 8GB of memory
» Dual Gigabit Ethernet LAN controller
» SATA 3Gb/s, USB 3.0 5Gb/s, PCIe Mini, mSATA and CF card supported
» TPM v1.2 & 2.0 hardware security function supported by TPM module
» Stiffener bars

Specifications

Hardware Spec.

System
CPU Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Memory One 204-pin 1333/1066MHz dual-channel DDR3L SDRAM unbuffered DIMM
Memory Max. 8GB (J1900) / 4GB (N2807)
Physical Characteristics
Dimensions (LxWxH) (mm) 338 X 122
Net Weight 260
Storage
Storage 2 x SATA :3Gb/s
1 x mSATA :3Gb/s
1 x CF Type II Card
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
Ethernet 2 x LAN :1 x Intel® I211-AT PCIe controller, 1 x Intel® I211-AT PCIe controller
Audio Description: 7.1 channel HD Audio supported by IEI AC-KIT-892HD kit
I/O Interface 4 x Internal RS-232 :2x5 pin, P=2.54
2 x Internal RS-232/422/485 :2x5 pin, P=2.54
1 x External USB 2.0
1 x External USB 3.2 Gen1x1
5 x Internal USB 2.0 :1 x 180° Type-A,4 X 2x4 pin,P=2.54
1 x PS/2 :1x6 pin
1 x LPT :2x13 pin
Expansion 1 x PCIe mini Card Slot
Other Features
TPM 2x10 pin
Power
Power Consumption 3.3V@0.009A, 5V@4.68A, 5Vsb@0.008A, 12V@1.143A
(Intel® Celeron® J1900 1.99 GHz 10W CPU with 8GB 1600MHz DDR3L memory)
Power Supply 5V/12V, Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

WSB-BT-N28071-R10 Full-size PICMG 1.0 CPU card supports Intel® Celeron™ N2807 on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS
WSB-BT-J19001-R10 Full-size PICMG 1.0 CPU card supports Intel® Celeron™ J1900 on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS

Package Contents

Package Content

  • 1 x WSB-BT single board computer

  • 1 x Dual RS-232 cable with bracket

  • 1 x SATA cable

  • 1 x QIG
