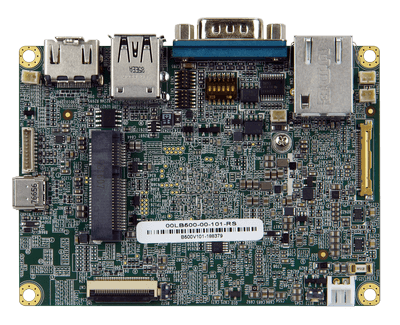

HYPER-RK39

PICO-ITX SBC, 采用 Rockchip RK3399 处理器, 2GB LPDDR3, 16GB eMMC Flash, HDMI™, eDP, GbE LAN, PCIe mini, USB 3.0, USB 2.0, COM, RoHS

End of Life

HYPER-RK39 Back Side
HYPER-RK39 I/O
  • HYPER-RK39 Back Side
  • HYPER-RK39 I/O

End of Life Notice

* Effective Date: 2020/09/18

» Pico-ITX SBC 支持 Rockchip RK3399
» 支持 HDMI™ 和 eDP 双显示
» 操作系统：Android 7.1

Specifications

Hardware Spec.

System
CPU Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
Memory LPDDR3-1866
Memory Max. 2GB
Physical Characteristics
Dimensions (LxWxH) (mm) 100 X 72
Net Weight 80g
Storage
Storage 1 x SD/MicroSD card
1 x eMMC 16GB
I/O Interface
Display Output 1 x HDMI™
Display Port :eDP
Ethernet 1 x LAN :GbE RJ45 by RTL8211E
Audio 1 x Line in :1x10 pin
1 x Line out :1x10 pin
1 x Speaker :1x2 pin
I/O Interface 1 x External RS-232/422/485
1 x External USB 2.0
2 x External USB 3.2 Gen1x1
Expansion 1 x PCIe mini Card Slot :Full-size (reserved for WWAN)
Power
Power Consumption 12V @ 1.2A
Power Supply 1 x 2 pin DC 12V in wafer connector
Environment
Operating Temperature -10°C ~ 50°C with air flow
Storage Temperature -20°C ~ 60°C
Humidity 10% ~ 90%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

HYPER-RK39-R10 PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI™, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, RoHS
HYPER-RK39-R10-CN PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI™, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi CN reg, ROHS
HYPER-RK39-R10-EU PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI™, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi EU reg, ROHS
HYPER-RK39-R10-TW PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI™, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi TW reg, ROHS
HYPER-RK39-R10-US PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI™, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi US reg, ROHS

Package Contents

Package Content

  • 1 x Hyper-RK 单板

  • 1 x 2 pin DC 电源线

  • 1 x 散热器组

  • 1 x RTC 电池
