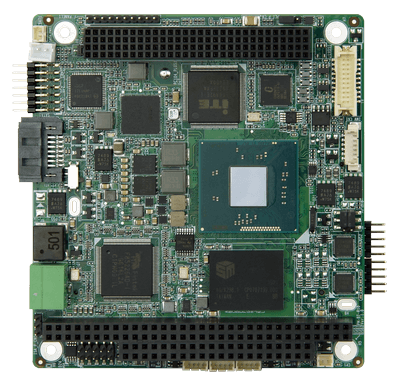

» PC/104 规格 SBC 支持 22nm Intel® Atom™ 板载 SoC
» 支持 PC/104-Plus (ISA 和 PCI signal) 功能
» 5V DC 输入解决方案
» 支持 2 COM, PCIe Mini, USB 和可选板载 SSD
» VGA 和 LVDS 双显示
» -40°C ~ 85°C 的宽范围温度支持 (适用于 E38xx 系列 CPU)
» IEI 一键恢复解决方案可以创建快速操作系统备份和恢复
Hardware Spec.
| System | |
|---|---|
| CPU |
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W) Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W) Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W) Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W) |
| Memory | One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM |
| Memory Max. |
8 GB (J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 96 X 90 |
| Net Weight | 120 |
| Storage | |
| Storage | 1 x 2.5” SSD/HDD Bay On-board (optional, support by request) |
| I/O Interface | |
| Display Output | 1 x VGA :up to 2560x1600@60Hz |
| 1 x LVDS :18/24-bit single-channel (2x10 pin) | |
| Ethernet | Description: 1 x Intel® I210 |
| Power | |
| Power Consumption | 5V@1.70A (Intel® Celeron® J1900 CPU with 8GB memory ) |
| Power Supply |
5V DC input 12V for fan, LVDS and PCI-104 plus » 5V for PCI-104 plus (1x3 pin, P=2.0) » 12V for PCI-104 plus (1x3 pin, P=2.0) 3/5V jumper for PCI-104 plus Support AT/ATX mode ErP/EuP Compliant |
| Environment | |
| Operating Temperature |
-20°C ~ 60°C (for J1900/N2930/N2807); -40°C ~ 85°C (for E38xx); |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| Compatible Model | |
| Motherboard | CE/FCC |
Ordering Information
| PM-BT-N28071-R10 | PC/104-Plus Single Board Computer with Intel® Atom™ N2807 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS |
|---|---|
| PM-BT-J19001-R10 | PC/104-Plus Single Board Computer with Intel® Atom™ J1900 SoC with DDR3L, VGA, LVDS,GbE, USB2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS |
Package Contents
| Package Content |
|
|---|
