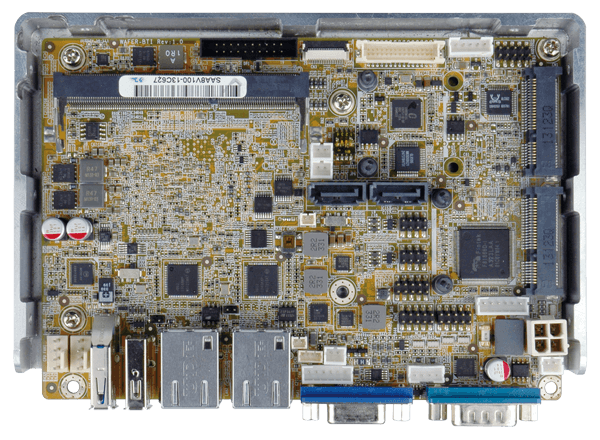

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

» 3.5” SBC 支持 Intel® 22nm Atom™ 板载 SoC
» 支持独立双显
» 1333/1066 MHz 1.35V DDR3L SDRAM 高达 8 GB
» 支持 COM, USB 3.0, SATA 3Gb/s, PCIe Mini, mSATA 和音频
» IEI 一键恢复解决方案 您可以快速创建操作系统备份和恢复

Specifications

Hardware Spec.

系统
CPU Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
内存 One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM
内存上限 8 GB (J1900, N2930, E3845, E3827, E3826, E3825, E3815),4 GB (N2807)
物理特性
尺寸 (LxWxH) (mm) 146 X 102
净重 250
存储
存储 2 x SATA :3Gb/s with 5V SATA power connector
I/O 接口
显示输出 1 x VGA :up to 2560x1600@60Hz
1 x LVDS :24-bit dual-channel LVDS connector (up to 1920x1200@60Hz)
1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
网络 2 x LAN :2 x PCIe GbE by Intel I210 controller
音频 描述: Realtek ALC888S HD codec
1 x Front Audio :2x5 pin
I/O接口 2 x 内部RS-232 :2x5 pin, P=2.0
1 x Internal RS-422/485 :1x4 pin, P=2.0
4 x 内部 USB 2.0 :2x4 pin, P=2.0
1 x PS/2 :1x6 pin
扩展 2 x PCIe mini Card Slot :1 x Support mSATA colay with SATA port 2,1 x except for ECO sku
电源
电源功耗 12V@1.45A (Intel® Celeron® J1900 with one 8 GB 1333 MHz DDR3 memory)
电源供电 12V only DC input,1 x internal power connector(2 x 2 pin),Support AT/ATX mode
环境
操作温度 -20°C ~ 60°C
存储温度 -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
认证
Safety & EMC CE/FCC compliant

Ordering Information

WAFER-BT-N29301-R22 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ N2930 1.83GHz (7.5W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
WAFER-BT-N28071-R22 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
WAFER-BT-J19001-R22 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS
WAFER-BT-J19001-ECO-R22 3.5" SBC supports Intel® 22nm Quad-Core Celeron™ J1900 2.0GHz (10W)on-board SoC with VGA/LVDS/iDP, Dual PCIe GbE, USB 2.0, PCIe Mini, SATA 6Gb/s, mSATA , COM, Audio and RoHS

Package Contents

Package Content

  • 1 x WAFER-BT 单板机

  • 1 x SATA 具有电源线套件

  • 1 x 音频线

  • 1 x 电源线

  • 1 x QIG (快速安装指南)
