End of Life Notice
* Effective Date: 2022/05/13
» miniPCIe 外形尺寸 (30 x 50 mm)
» 2 x Intel® Movidius™ Myriad™ X VPU MA2485
» 能效 ,约 7.5W
» 操作温度 -20°C~60°C
» 由 Intel 的 OpenVINO™ 工具套件提供支持
Hardware Spec.
| System | |
|---|---|
| Chipset | 2 x Intel® Movidius™ Myriad™ X MA2485 VPU |
| Cooling method / System Fan | Active Heatsink |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 30 X 50 |
| Falt-tolerance | |
| LAN Bypass | miniPCIe |
| Power | |
| Power Consumption | Approximate 7.5W |
| Environment | |
| Operating Temperature | -20°C~60°C |
| Humidity | 5% ~ 90% |
Ordering Information

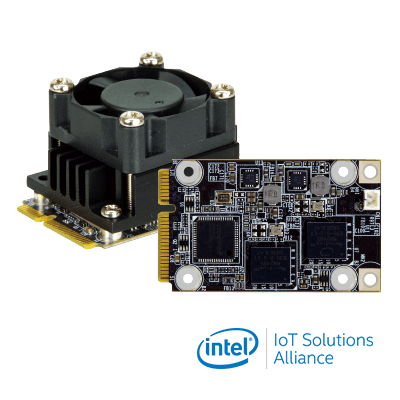

| Mustang-MPCIE-MX2-R10 | Deep learning inference accelerating miniPCIe card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, miniPCIe interface 30mmx50mm, RoHS |
|---|
