PAC-400AI-C236

Half-size AI System with Intel® Xeon® E3-1275 v5 CPU (3.60 GHz, Quad Core, TDP 80W) / Intel® C236, pre-installed 16GB ECC DDR4 SO-DIMM memory, VGA, Intel GbE, USB 3.2, PCIe Mini, 1 PCIe x16/x4 Slot BP, FSP350 (350W), RoHS

End of Life

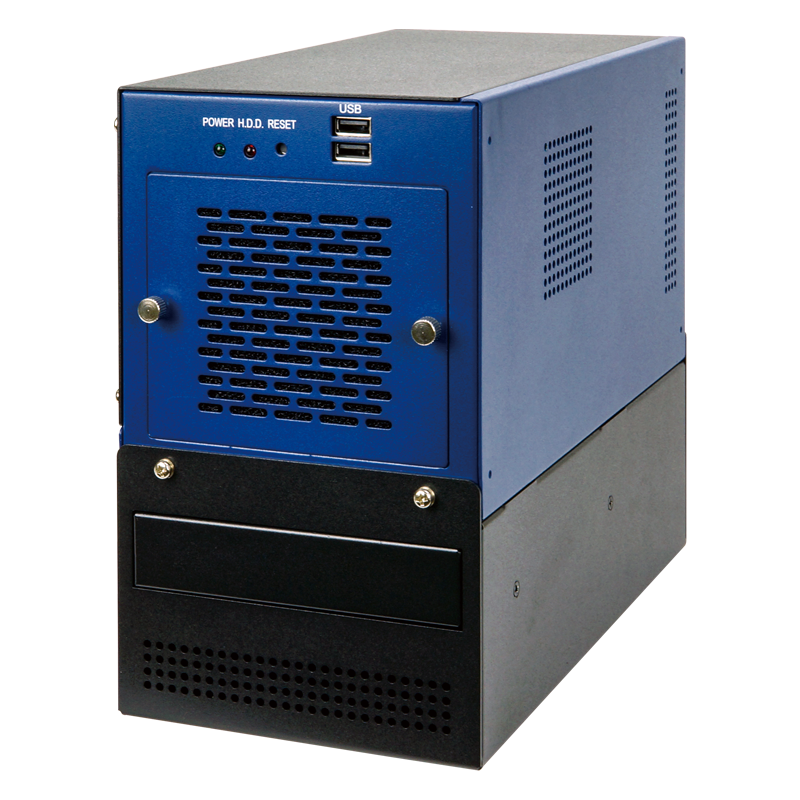

PAC-400AI-C236_Left

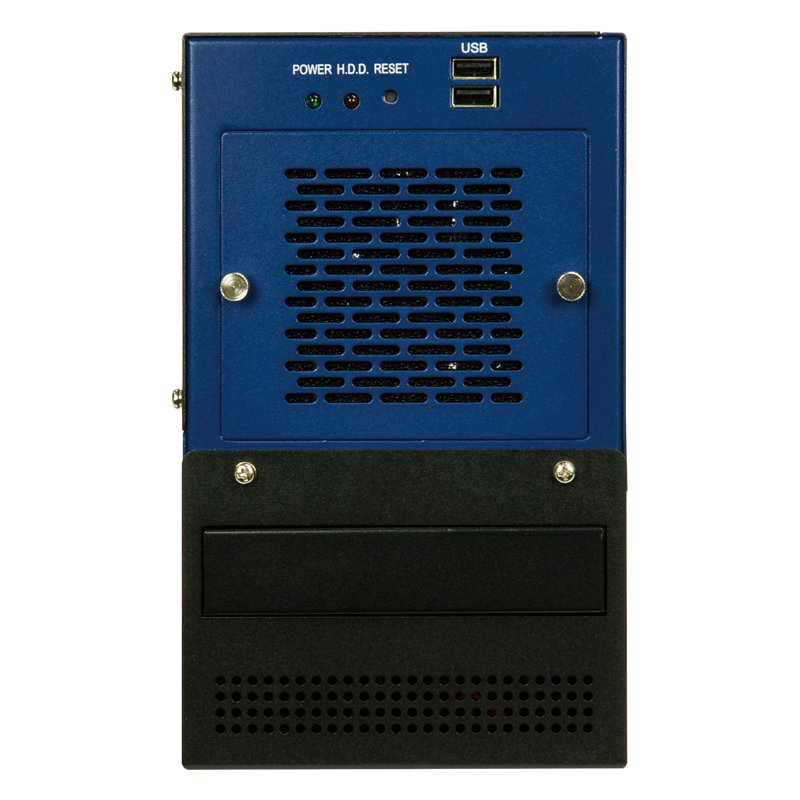

PAC-400AI-C236_F

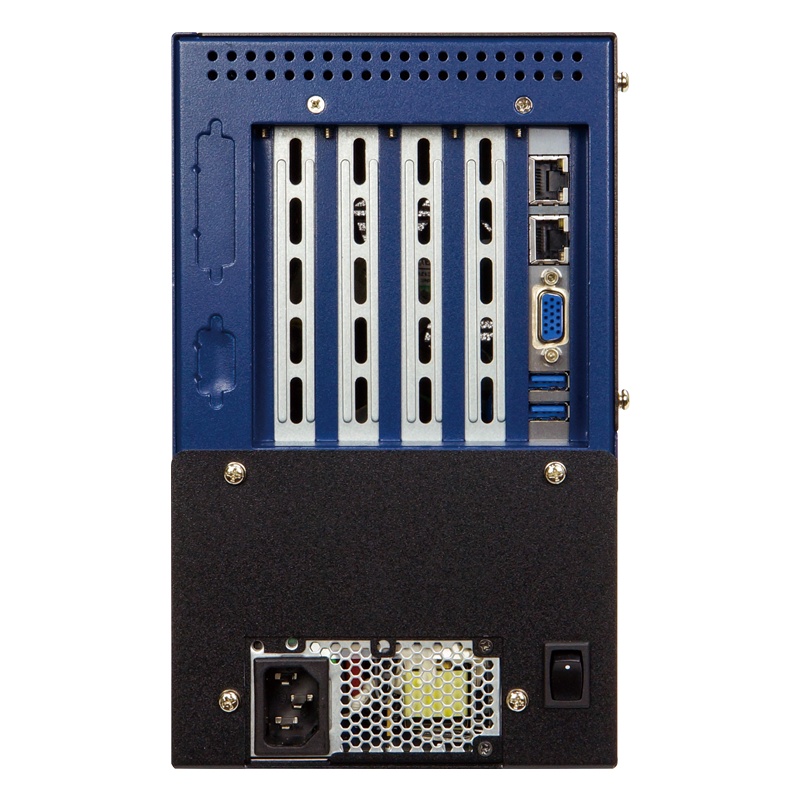

PAC-400AI-C236_B

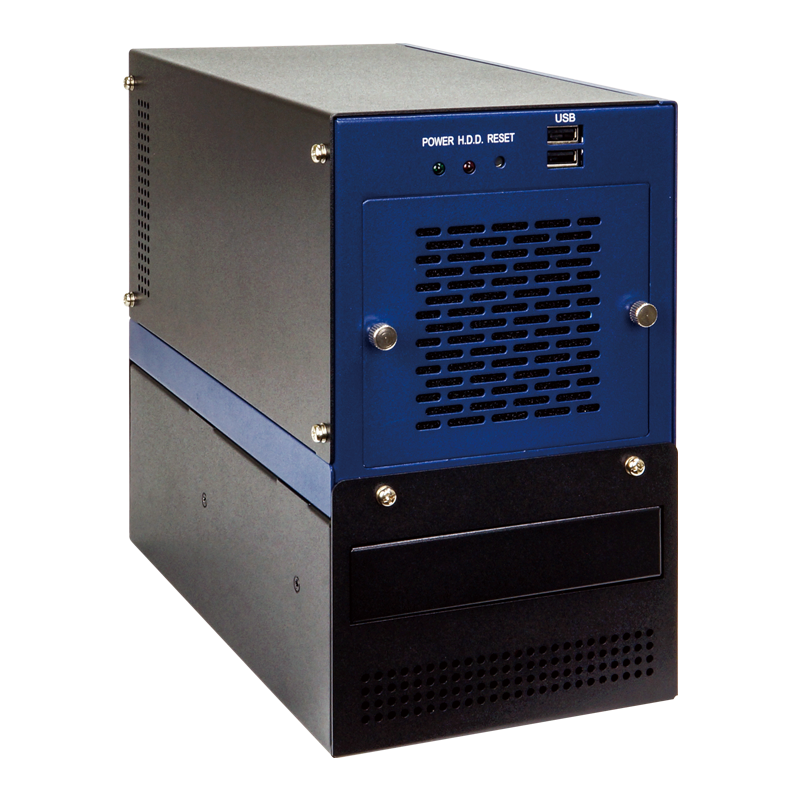

PAC-400AI-C236_Right
  • PAC-400AI-C236_Left
  • PAC-400AI-C236_F
  • PAC-400AI-C236_B
  • PAC-400AI-C236_Right

End of Life Notice

* Effective Date: 2021/09/07

» Intel® Skylake C236 chipset with Intel® Xeon® E3-1275 v5 CPU (3.60 GHz, Quad Core, TDP 80W)
» One 3.5” drive bay, for optional removable drive
» Integrated one PCIe x16 and one PCIe x4 Gen3 expansion slot(support maximum length 169mm PCIe add-on cards)
» Great flexibility hardware expansion

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    Intel® Xeon® E3-1275 v5 CPU (3.60 GHz, Quad Core, TDP 80W)
  • Chipset:
    Intel® C236
  • System Memory:
    Two 260-pin 1600/2133 MHz dual-channel DDR4 ECC and non-ECC unbuffered SODIMMs support up to 32 GB(2 x 8GB Pre-installed)
  • Reliability:
    Operating Shock: Half-sine wave shock 5G, 11ms, 100 shocks per axis
    Operating Vibration: MIL-STD-810G 514.6C-1
    Safety/EMC: CE/FCC
I/O Interface
I/O Ports
  • I/O Interface
    1 x VGA (up to 1920*1080@60Hz)
    2 x USB 3.2 Gen 1 (5Gb/s)
    2 x GbE LAN (Intel® I219LM and I210)
    2 x USB 2.0
  • Internal I/O Interface
    1 x KB/MS (1x6 pin)
    2 x SATA 6Gb/s (RAID 0, 1 supported)
    1 x mSATA (SATA & USB signal)
    4 x USB 2.0 (2x4 pin, P=2.0)
    2 x RS-232/422/485 (2x5 pin, P=2.0)
Expansion Slots
Expansion Slots 1 x PCIe *16 slot
1 x PCIe *4 slot
1 x Full/Half-size PCIe Mini card slot (supports mSATA)
System
Cooling method / System Fan System fan
Drive Bays 1x 3.5”6 Gb/s SATA removable drive Bay (Hot swap)
Indicator&Buttons
Buttons 1 x Power Switch
1 x Reset Button
Indicators HDD & Power
Physical Characteristics
Construction Heavy Duty Metal
Color
Color Navy Blue & Black
Dimensions
Dimensions 268.7mm x 140mm x 230.3mm (WxDxH)
Weight
Weight 6 kg/7.8 kg
Environment
Operating Temperature 0°C~+50°C
Humidity 10% ~ 95%, non-condensing

Ordering Information

PAC-400AI-C236-XE/16G/35-R10 Half-size AI System with Intel® Xeon® E3-1275 v5 CPU (3.60 GHz, Quad Core, TDP 80W) w/ Intel® C236, pre-installed 16GB ECC DDR4 SO-DIMM memory, VGA, Intel GbE, USB 3.2, PCIe Mini, w/ 1 PCIe x16/x4 Slot BP, w/ FSP350 (350W), RoHS
PAC-400AI-C236-35-R10 Half-size AI System with Intel® C236, VGA, Intel GbE, USB 3.2, PCIe Mini, w/ 1 PCIe x16/x4 Slot BP, w/ FSP350 (350W), RoHS

Package Contents

Package Content

  • 1 x PAC-400AI-C236 AI System

  • 1 x Chassis Screw
